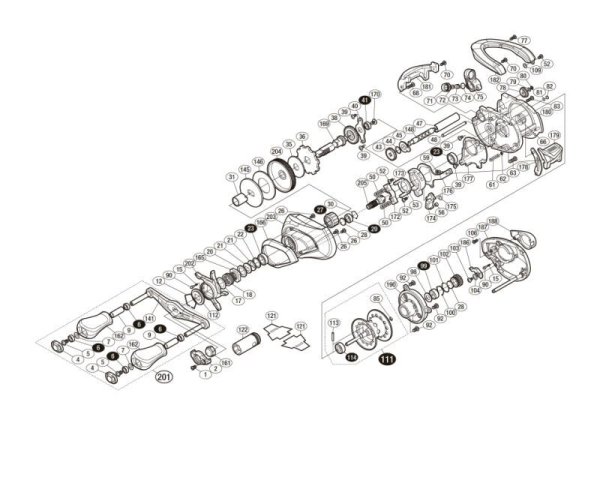

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "27 / ROLLER CLUTCH" and "113 / SPOOL CLUTCH PIN" and "114 / BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13BAF REEL BAG (ACCESSORY) 10.45
1 13B0N FIXING BOLT 3.85
2 13B7Q RETAINER 2.75
4 10FMM HANDLE CAP 1.65
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4 X 7 X 2.5) 13.75
7 104FH WASHER 2.20
9 109VL KNOB FIXING SHAFT PIPE 3.85
12 10KXV STAR DRAG CLICK PLATE STOPPER 1.65
15 10988 CLICK SPRING 1.65
17 10HHN SLIDER WASHER (9 X 13 X 0.3) 1.65
18 10A71 STAR DRAG SPRING 2.75
20 10J1N STAR DRAG SPACER 1.65
21 10D60 MAIN GEAR WASHER (C) 1.65
22 105PW STAR DRAG BEARING WASHER 1.10
23 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
26 103N7 FIXING BOLT 1.10
27 10TM8 ROLLER CLUTCH *Cannot be ordered 17.05
28 1057S SPOOL SHAFT CONTACT TALLY (B) 1.10
29 105BP BALL BEARING (5 X 9 X 3) 13.75
30 10R0Q EXTRACTION STOPPER 1.65
31 10R06 ROLLER CLUTCH INNER TUBE 6.05
35 10CHZ STAR DRAG WASHER 2.75
36 10D77 STOPPER GEAR 3.85
38 10J77 CROSS GEAR (A) 3.85
39 10MT2 FIXING BOLT 1.10
40 109T5 MAIN GEAR SHAFT FIXING PLATE 1.65
41 104JZ BALL BEARING (5 X 8 X 2.5) 13.75
43 10FP4 CROSS GEAR (C) 2.75
44 10G84 WASHER 1.10
45 10NCZ WORM SHAFT RECEIVER (A) 1.65
47 10NJH LEVEL-WIND PIPE 6.05
48 10QSL LEVEL-WIND ROD 2.75
50 104BU CLUTCH YOKE SPRING 1.10
52 10LVH CLUTCH CAM FIXING BOLT 1.10
53 10F43 CLUTCH CAM PUSH PLATE 9.35
56 1048C CLUTCH CLAW BUSH 1.65
59 103C0 FIXING BOLT 1.10
61 13RF8 DAMPER SPRING 1.65
62 105NB E TYPE STOP RING 1.5 1.10
63 101GQ FIXING BOLT 1.65
66 10EZE BB PUSH SPRING 1.65
68 10MT8 FIXING BOLT 1.10
70 10MPR MAIN BODY A SEAT B FIXING BOLT 1.10
71 10FJD LEVEL WINDING RECEIVER 3.85
72 10CFW ADJUSTMENT WASHER SET 1.10
73 10211 WORM SHAFT PIN 2.75
74 108WQ O RING 1.65
75 13AUX LEVEL WINDING ASSEMBLY 34.10
77 10LVL FIXING BOLT 1.10
78 104SR WORM SHAFT BEARING (B) 1.65
79 10BHX CROSS GEAR SHAFT WASHER (A) 1.10
80 105NC E-TYPE RETAINING RING 2 1.10
81 108Q2 BODY FRAME CONTACT WASHER 1.10
82 108Q2 BODY FRAME CONTACT WASHER 1.10
83 10LUY FIXING BOLT 1.10
85 10EZ7 O-RING 1.10
90 10B27 CLICK PIN 1.65
92 10LSL FIXING BOLT 1.10
98 10B94 BEARING SEAL 1.65
99 105C0 BALL BEARING (3 X 10 X 4) 13.75
100 13B4G BEARING RETAINING CLIP 1.10
101 108WA O-RING 1.65
102 13B6P MECHANICAL BRAKE KNOB 7.15
103 13AXA FIXING BOLT 1.65
104 10GFF WASHER 1.10
106 10559 FIXING BOLT 1.65
109 10G9W WASHER 1.10
111 13GNN SPOOL ASSEMBLY (WITH BEARINGS) 112.20
112 10J26 STAR DRAG CLICK PLATE 1.65
113 10MD0 SPOOL CLUTCH PIN *Cannot be ordered 1.65
114 10TMG BALL BEARING (5 X 11 X 4) *Cannot be ordered 13.75
121 10PBQ LEG PROTECTION SHEET 1.65
122 10MDK REEL WRENCH (ACCESSORY) 3.85
141 13AWA REEL HANDLE 39.60
145 10D3N STAR DRAG PLATE 2.75
146 1071T STAR DRAG WASHER 4.95
148 13B5K WORM SHAFT 9.35
161 10FFJ HANDLE FIXING NUT 6.05
162 1032A HANDLE KNOB 11.55
165 10A0C STAR DRAG FIXING NUT 2.75
166 13B6W BODY A NAMEPLATE 6.05
169 13B74 DRIVE GEAR SHAFT 28.05
170 10PVU FIXING BOLT 1.65
172 10471 CLUTCH YOKE 1.65
173 10KSC CLUTCH CAM 2.75
174 105ZV CLUTCH CLAW 3.85
175 10N1V CLUTCH CLAW SPRING 1.65
176 10QLQ CLUTCH PLATE 4.95
177 10BVY BODY A SEAT 3.85
178 1099C CLUTCH LEVER RECEIVER (B) 1.65
179 13AVS CLUTCH LEVER 9.35
180 13AUJ FRAME 123.75
181 13B5V LEVEL WIND GUARD 11.55
182 13B52 THUMB REST 50.60
186 13B4R BODY B CAM LEVER 1.65
187 13ATY BODY B ASSEMBLY 56.10
188 13B4V BR KNOB NAMEPLATE 2.75
190 13FYL B RECEIVING BASE ASSEMBLY 173.80
201 13AWM HANDLE ASSEMBLY 112.20
202 13B7M STAR DRAG 28.05
203 13B6L BODY A 78.65
204 10CRB DRIVE GEAR 28.05
205 13B64 PINION GEAR 22.55
BNKI 13BAH EXPLODED VIEW (ACCESSORIES) 1.65
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
TRST 13B7Y INSTRUCTION MANUAL (ACCESSORY) 1.65
