  3. > [SHIMANO] 21 ANTARES DC Genuine Parts List - Schematic Diagram & Parts Diagram
  4. > [SHIMANO] Genuine Spare Parts for 21 ANTARES DC HG R Product code: 042620 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 21 ANTARES DC HG R Product code: 042620 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 21 ANTARES DC HG R Product code: 042620 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No98 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/5006

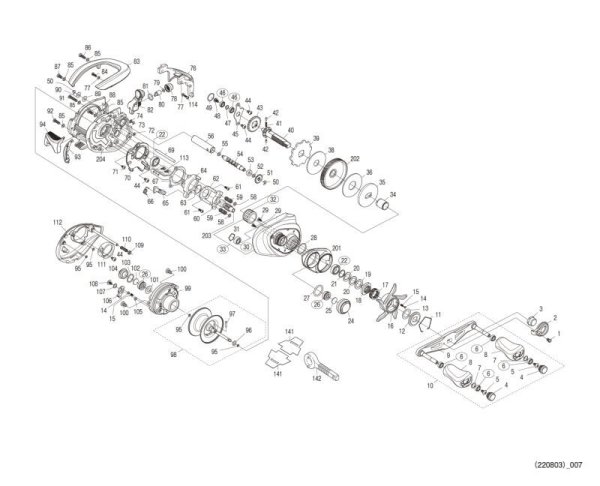

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "32 / ROLLER CLUTCH" and "97 / SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13WNG REEL BAG (ACCESSORY) 9.35
1 10R1Q FIXING BOLT 1.65
2 10SSK RETAINER 3.85
3 101M3 HANDLE FIXING NUT 2.75
4 10E4R HANDLE CAP 3.85
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4 X 7 X 2.5) 13.75
7 104FH WASHER 2.20
8 10E9X HANDLE KNOB 11.55
9 13HVK HANDLE KNOB 22.55
10 13AWZ HANDLE ASSEMBLY 82.50
11 10KXV STAR DRAG CLICK PLATE RETAINER 1.65
12 10J1Y STAR DRAG CLICK PLATE 1.65
13 10HHM SLIDER WASHER (9 X 13 X 0.2) 1.10
14 10B27 CLICK PIN 1.65
15 10988 CLICK SPRING 1.65
16 13V45 STAR DRAG 28.05
17 10A71 STAR DRAG SPRING 2.75
18 10A0B STAR DRAG FIXING NUT 2.75
19 10J1N STAR DRAG SPACER 1.65
20 10D60 MAIN GEAR WASHER (C) 1.65
21 105PW STAR DRAG BEARING WASHER 1.10
22 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
24 13U8K LUBRICATING HOLE CAP A 5.50
25 1057Q SPOOL SHAFT CONTACT TALLY (B) 1.10
26 10S37 BALL BEARING (3 X 10 X 4) 13.75
27 10LA9 O-RING 1.65
28 1027V O-RING 1.65
29 1055J FIXING BOLT 1.65
30 105BP BALL BEARING (5 X 9 X 3) 13.75
31 10R0Q STOPPER 1.65
32 1005E ROLLER CLUTCH *Cannot be ordered 17.05
33 13HPS BODY A ASSEMBLY 112.20
34 10BN3 ROLLER CLUTCH INNER TUBE 6.05
35 13UXZ STAR DRAG PLATE 3.30
36 10RWJ STAR DRAG WASHER 9.35
38 10CJ1 STAR DRAG WASHER 3.85
39 10RLS STOPPER GEAR 3.85
40 10T7U DRIVE GEAR SHAFT 13.20
41 10JDX SPRING FOR WORM SHAFT GEAR 1.65
42 10HJG WORM SHAFT GEAR PINS 1.65
43 10057 WORM SHAFT GEAR 2.75
44 10DSZ FIXING BOLT 1.10
45 13VAC DRIVE GEAR SHAFT FIXING PLATE 1.65
46 10SAM BALL BEARING (4 X 7 X 2) 13.75
47 10THF WASHER 1.10
48 10DR4 FIXING BOLT 1.10
49 10SZ4 O-RING 1.65
50 105NC E TYPE STOP RING 2 1.10
51 10FNX WORM SHAFT GEAR 2.75
52 10J1J WORM SHAFT GEAR 1.10
53 10PXY HANDLE NIGIRI BUSHING (B) 1.65
54 10EET WORM SHAFT 2.75
55 10GFJ WASHER 1.10
56 10NFW LEVEL WINDING PIPE 1.65
58 13PKV WASHER 1.10
59 104BU CLUTCH YOKE SPRING 1.10
60 1046T CLUTCH YOKE 1.65
61 10LVH CLUTCH CAM FIXING BOLT 1.10
62 10F42 CLUTCH CAM PUSH PLATE 3.85
63 10G8C CLUTCH CAM WASHER 1.10
64 10SX6 CLUTCH CAM 2.75
65 105ZU CLUTCH CLAW 3.85
66 10N1Z CLUTCH CLAW SPRING 1.10
67 13TD4 CLUTCH PLATE 2.20
68 10559 FIXING BOLT 1.65
69 10RMM LEVEL WINDING GUIDE 2.75
70 13UF1 BODY A SEAT 1.65
71 100BD FIXING BOLT 1.65
72 10GFH WASHER 1.10
73 105NB E TYPE STOP RING 1.5 1.10
74 10GA7 WASHER 1.10
76 13SHK LEVEL WIND GUARD 6.05
77 13PKU WASHER 1.10
78 10FJB LEVEL WIND GIRDER 1.65
79 10T9Y WORM SHAFT PIN 2.20
80 10211 WORM SHAFT PIN 2.75
81 108WQ O-RING 1.65
82 13GH1 LEVEL WINDING ASSEMBLY 29.15
83 13RUL THUMB REST 51.70
84 10LVL FIXING BOLT 1.10
85 13PKW WASHER 1.10
86 13JXC FIXING BOLT 1.10
87 13JRF FIXING BOLT 1.10
88 10LZD FIXING BOLT 1.65
89 10E7G WASHER 1.10
90 10GA0 SEAT METAL 1.10
91 10RL4 FIXING BOLT 1.65
92 101GQ FIXING BOLT 1.65
93 13TD5 CLUTCH BAR GUIDE 1.10
94 13H6E CLUTCH BAR ASSEMBLY 8.80
95 10E7H O-RING 1.10
96 10TNF O-RING 1.65
97 10MD0 SPOOL CLUTCH PIN *Cannot be ordered 1.65
98 13GNW SPOOL ASSEMBLY 112.20
99 13FZD B RECEIVING BASE ASSEMBLY 173.80
100 13JXD FIXING BOLT 1.10
101 10B94 BEARING SEAL 1.65
102 1057S SPOOL SHAFT CONTACT TALLY (B) 1.10
103 108WA O RING 1.65
104 13LGC LUBRICATION HOLE CAP B 5.50
105 10CFZ O RING 1.65
106 13RNG BODY B CAM LEVER 1.10
107 10GFF WASHER 1.10
108 13AXA FIXING BOLT 1.65
109 10RLZ BODY B SHAFT GUIDE 1.65
110 10REG DAMPER SPRING 1.65
111 13RNH BRAKE DIAL NAMEPLATE 2.75
112 13FTF BODY B 95.70
113 13X9L FIXING BOLT 3.85
114 101CN FIXING BOLT 1.65
141 10PBQ LEG PROTECTION SHEET 1.65
142 10NC0 REEL WRENCH (ACCESSORY) 1.65
201 13U95 BODY A NAMEPLATE 12.65
202 10CRA DRIVE GEAR 28.05
203 13SPK PINION GEAR 22.55
204 13GAQ FRAME ASSEMBLY 111.10
BNKI 13WUT EXPLODED VIEW (ACCESSORY) 1.65
OIL1 10LQ0 B-100 OIL (4.5G) 3.85
TRST 13VU0 INSTRUCTION MANUAL (ACCESSORY) 1.65
