[SHIMANO] Genuine Spare Parts for 23 ANTARES DC MD XG L Product code: 046031 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.97 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/5767

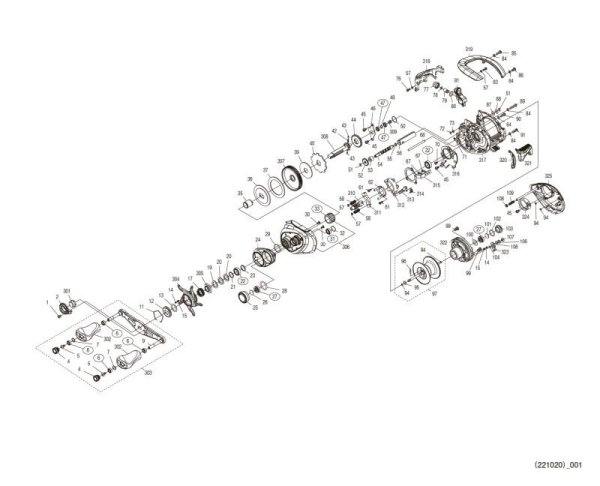

| Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* As for the "33 / ROLLER CLUTCH" and "96 / SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.
| No. | S Part No. | Description | Price (USD) |
| 1 | 10R1Q | FIXING BOLT | 1.65 |
| 2 | 1017T | RETAINER | 3.85 |
| 4 | 13MBX | HANDLE CAP | 8.80 |
| 5 | 103E9 | FIXING BOLT | 1.10 |
| 6 | 104VX | BALL BEARING (4 X 7 X 2.5) | 13.75 |
| 7 | 104FH | WASHER | 2.20 |
| 9 | 13ZTD | HANDLE SHAFT ASSEMBLY | 22.55 |
| 11 | 10KXV | STAR DRAG CLICK PLATE RETAINER | 1.65 |
| 12 | 10J1Y | STAR DRAG CLICK PLATE | 1.65 |
| 13 | 10HHM | SLIDER WASHER (9 X 13 X 0.2) | 1.10 |
| 14 | 10B27 | CLICK PIN | 1.65 |
| 15 | 10988 | CLICK SPRING | 1.65 |
| 17 | 10A71 | STAR DRAG SPRING | 2.75 |
| 19 | 10J1N | STAR DRAG SPACER | 1.65 |
| 20 | 10D60 | MAIN GEAR WASHER (C) | 1.65 |
| 21 | 105PW | STAR DRAG BEARING WASHER | 1.10 |
| 22 | 10EX8 | BALL BEARING (8 X 12 X 3.5) | 13.75 |
| 23 | 13ZXU | STAR DRAG BEARING WASHER | 1.10 |
| 24 | 13ZTP | MAIN UNIT A NAMEPLATE | 12.65 |
| 25 | 13U93 | MECHANICAL BRAKE KNOB | 33.00 |
| 26 | 1057Q | SPOOL SHAFT CONTACT TALLY (B) | 1.10 |
| 27 | 10S37 | BALL BEARING (3 X 10 X 4) | 13.75 |
| 28 | 10LA9 | O-RING | 1.65 |
| 29 | 1027V | O-RING | 1.65 |
| 30 | 1055J | FIXING BOLT | 1.65 |
| 31 | 105BP | BALL BEARING (5 X 9 X 3) | 13.75 |
| 32 | 10R0Q | STOPPER | 1.65 |
| 33 | 1005E | ROLLER CLUTCH *Cannot be ordered | 17.05 |
| 35 | 10BN3 | ROLLER CLUTCH INNER TUBE | 6.05 |
| 36 | 10D3L | STAR DRAG PLATE | 2.75 |
| 37 | 1071T | STAR DRAG WASHER | 4.95 |
| 39 | 10CHZ | STAR DRAG WASHER | 2.75 |
| 40 | 109BB | STOPPER GEAR | 6.05 |
| 42 | 10JDX | SPRING FOR WORM SHAFT GEAR | 1.65 |
| 43 | 10HJF | WORM SHAFT GEAR PINS | 1.65 |
| 44 | 10057 | WORM SHAFT GEAR | 2.75 |
| 45 | 10DSZ | FIXING BOLT | 1.10 |
| 46 | 13VAC | DRIVE GEAR SHAFT FIXING PLATE | 1.65 |
| 47 | 10SAM | BALL BEARING (4 X 7 X 2) | 13.75 |
| 48 | 13PKS | WASHER | 1.10 |
| 50 | 10SZ4 | O-RING | 1.65 |
| 51 | 105NC | E TYPE STOP RING 2 | 1.10 |
| 52 | 10FNX | WORM SHAFT GEAR | 2.75 |
| 53 | 13ZTS | WORM SHAFT BUSH | 1.65 |
| 54 | 13ZTK | WORM SHAFT | 2.75 |
| 55 | 10GHF | WASHER | 1.10 |
| 56 | 10NFW | LEVEL WINDING PIPE | 1.65 |
| 57 | 13PKU | WASHER | 1.10 |
| 58 | 13T1T | CLUTCH YOKE SPRING | 1.10 |
| 61 | 10LVH | CLUTCH CAM FIXING BOLT | 1.10 |
| 62 | 13UEP | CLUTCH CAM PUSH PLATE | 3.85 |
| 67 | 101LH | FIXING BOLT | 1.10 |
| 68 | 13ZTL | LEVEL WINDING GUIDE | 2.75 |
| 70 | 100BD | FIXING BOLT | 1.65 |
| 71 | 13PFS | WASHER | 1.10 |
| 72 | 105NB | E TYPE STOP RING 1.5 | 1.10 |
| 73 | 10GA7 | LOCKING BOLT | 1.10 |
| 76 | 101CN | FIXING BOLT | 1.65 |
| 77 | 10FJB | LEVEL WINDING RECEIVER | 1.65 |
| 78 | 10T9Y | WASHER | 2.20 |
| 79 | 10211 | WORM SHAFT PIN | 2.75 |
| 80 | 108WQ | O-RING | 1.65 |
| 81 | 13ZT5 | LEVEL WINDING ASSEMBLY | 29.15 |
| 83 | 10LVL | FIXING BOLT | 1.10 |
| 84 | 13PKW | WASHER | 1.10 |
| 85 | 13JXC | FIXING BOLT | 1.10 |
| 86 | 13JRF | FIXING BOLT | 1.10 |
| 87 | 10E7G | WASHER | 1.10 |
| 88 | 10QW8 | SEAT METAL | 1.10 |
| 89 | 10RL4 | FIXING BOLT | 1.65 |
| 90 | 10LZD | FIXING BOLT | 1.65 |
| 91 | 101GQ | FIXING BOLT | 1.65 |
| 94 | 10E7H | O-RING | 1.10 |
| 95 | 10TNF | O-RING | 1.65 |
| 96 | 10MD0 | SPOOL CLUTCH PIN *Cannot be ordered | 1.65 |
| 97 | 13ZT6 | SPOOL ASSEMBLY | 112.20 |
| 99 | 13JXD | FIXING BOLT | 1.10 |
| 100 | 10B94 | BEARING SEAL | 1.65 |
| 101 | 1057S | SPOOL SHAFT CONTACT TALLY (B) | 1.10 |
| 102 | 108WA | O-RING | 1.65 |
| 103 | 13LGC | LUBRICATION HOLE CAP B | 5.50 |
| 104 | 10CFZ | O-RING | 1.65 |
| 106 | 10210 | WASHER | 1.10 |
| 107 | 13AXA | FIXING BOLT | 1.65 |
| 108 | 10RLZ | BODY B SHAFT GUIDE | 1.65 |
| 109 | 10REG | DAMPER SPRING | 1.65 |
| 301 | 13V4K | HANDLE FIXING NUT | 8.25 |
| 302 | 101EW | HANDLE KNOB | 11.00 |
| 303 | 13ZTF | HANDLE ASSEMBLY | 82.50 |
| 304 | 13V4B | STAR DRAG | 28.05 |
| 305 | 10A0C | STAR DRAG FIXING NUT | 2.75 |
| 306 | 13ZTC | BODY A SET | 112.20 |
| 307 | 13ZTR | DRIVE GEAR | 28.05 |
| 308 | 13ULL | DRIVE GEAR SHAFT | 13.20 |
| 309 | 10DR5 | FIXING BOLT | 1.10 |
| 310 | 13SPN | PINION GEAR | 22.55 |
| 311 | 13T1U | CLUTCH YOKE | 1.65 |
| 312 | 10SKS | CLUTCH CAM | 2.75 |
| 313 | 105ZV | CLUTCH CLAW | 3.85 |
| 314 | 10N1V | CLUTCH CLAW SPRING | 1.65 |
| 315 | 13TD6 | CLUTCH PLATE | 2.20 |
| 316 | 13UEL | BODY A SEAT | 1.65 |
| 317 | 13ZT4 | FRAME ASSEMBLY | 123.75 |
| 318 | 13ZTN | LEVEL WIND GUARD | 6.05 |
| 319 | 13ZTJ | THUMB REST | 57.20 |
| 320 | 13TD7 | CLUTCH BAR GUIDE | 1.10 |
| 321 | 13ZT8 | CLUTCH BAR ASSEMBLY | 15.40 |
| 322 | 13ZT2 | B CLUTCH LEVER BASE ASSEMBLY | 173.80 |
| 323 | 13RNJ | BODY B CAM LEVER | 1.10 |
| 324 | 13RNK | BRAKE DIAL NAMEPLATE | 2.75 |
| 325 | 13ZT0 | BODY B ASSEMBLY | 95.70 |
| *F01 | 13WNG | REEL BAG (ACCESSORY) | 9.35 |
| BNKI | 13ZTT | EXPLODED VIEW (ACCESSORY) | 1.65 |
| SEAL | 13X15 | KC SEAL | 1.10 |
| TRST | 13ZTG | INSTRUCTION MANUAL (ACCESSORY) | 1.65 |
