[SHIMANO] Genuine Spare Parts for 20 STELLA SW 4000XG Product Code: 040749 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.66 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.2 / Spool Unit), you can purchase
it from the following link without waiting for weeks if it's in our stock
now.
https://www.hedgehog-studio.co.jp/phone/product/4525

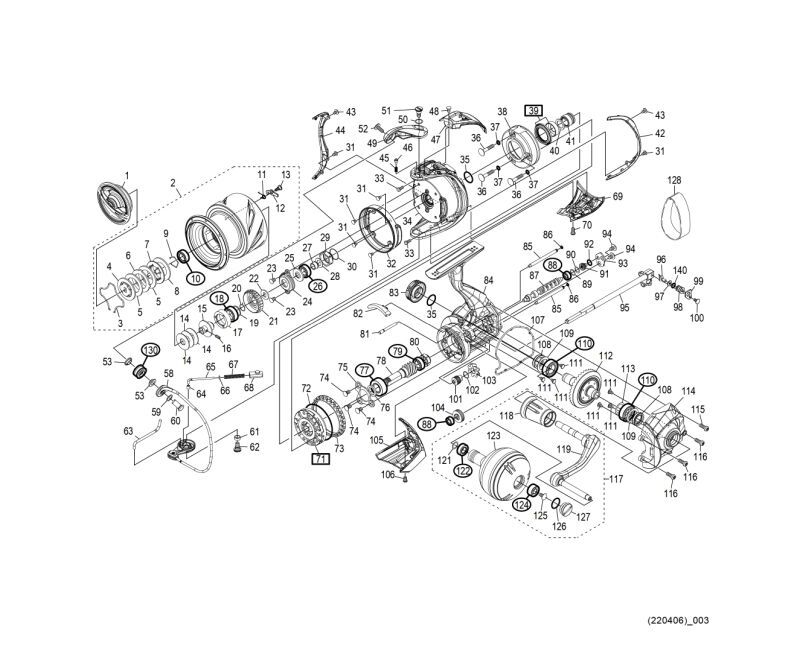

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
*Parts with square numbers are for repair only.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
*F01 | 13QRF | REEL BAG (ACCESSORY) | 28.05 |
1 | 10THQ | DRAG KNOB ASSEMBLY | 45.10 |
2 | 100Z1 | SPOOL ASSEMBLY | 190.30 |
3 | 10T58 | STOPPER SPRING | 1.10 |
4 | 10QBV | OVAL WASHER | 6.05 |
5 | 10345 | DRAG WASHER | 6.05 |
6 | 10BCP | DRAG EAR WASHERS | 6.05 |
7 | 10BBQ | OVAL WASHERS | 2.75 |
8 | 10C1A | DRAG WASHERS | 6.05 |
9 | 10GEW | BEARING PULL-OUT STOPPER | 1.10 |
10 | 104JT | BALL BEARING (6 X 10 X 3) | 13.75 |
11 | 10BQE | SPOOL PIN SPRING | 1.65 |
12 | 10TJX | SPOOL PIN | 1.65 |
13 | 10A6F | FIXING BOLT | 1.65 |
14 | 101AV | SPOOL WASHER (A) | 2.20 |
15 | 10LTS | SPOOL SHAFT BEARING GUIDE | 6.05 |
16 | 10PN2 | SET SCREW | 1.65 |
17 | 10TQH | BEARING COLLAR | 2.75 |
18 | 10EX8 | BALL BEARING (8 X 12 X 3.5) | 13.75 |
19 | 10GHN | WASHER | 1.65 |
20 | 107V2 | RATCHET SPRING | 1.65 |
21 | 107PS | DRAG SOUNDING RATCHET | 2.75 |
22 | 103NX | SPOOL RECEIVER | 1.65 |
23 | 103LB | FIXING BOLT | 1.10 |
24 | 1076P | RETAINER | 2.75 |
25 | 107F2 | ROTATING FRAME BEARING SEAL | 2.75 |
26 | 104JV | BALL BEARING (6 X 10 X 3) | 13.75 |
27 | 10RLC | ROTOR BEARING COLLAR | 6.05 |
28 | 101M1 | WASHER | 1.10 |
29 | 1080X | ROTOR NUT | 9.35 |
30 | 1015S | O-RING | 1.65 |
31 | 10DND | FIXING BOLT | 1.65 |
32 | 10EA4 | ROTOR FLANGE | 9.35 |
33 | 103NC | FIXING BOLT | 1.10 |
34 | 100NP | ROTOR ASSEMBLY | 67.65 |
35 | 108WA | O-RING | 1.65 |
36 | 1015M | FIXING BOLT | 1.65 |
37 | 10LAD | O-RING | 1.10 |
38 | 10MHC | ROLLER CLUTCH SEAL COVER | 2.75 |
39 | 10RR7 | ROLLER CLUTCH SEAL ASSEMBLY *Cannot be ordered | 17.05 |
40 | 10J2G | ROTOR WASHER | 1.65 |
41 | 10667 | ROLLER CLUTCH INNER | 3.85 |
42 | 10RF0 | ROTOR GUARD (A) | 2.75 |
43 | 10MPF | FIXING BOLT | 1.10 |
44 | 10EA5 | ROTOR GUARD (B) | 2.75 |
45 | 10CGZ | CLICK SPRING | 1.65 |
46 | 106UX | CLICK PIN | 1.65 |
47 | 10EA0 | ARM CAM SPRING COVER | 9.35 |
48 | 1055D | FIXING BOLT | 1.65 |
49 | 10EA2 | ARM CAM | 45.10 |
50 | 10G6C | WASHER | 1.10 |
51 | 10RMA | FIXING BOLT | 6.05 |
52 | 10K40 | FIXING BOLT | 2.75 |
53 | 1020L | LINE ROLLER BEARING COLLAR | 2.75 |
58 | 100NN | BAIL ASSEMBLY | 45.10 |
59 | 1002S | ARM FIXING SHAFT WASHER | 1.10 |
60 | 10RKV | ARM FIXING SHAFT | 6.05 |
61 | 101D0 | BALE MOUNTING KECAM COLLAR | 1.65 |
62 | 10RGB | FIXING BOLT | 6.05 |
63 | 10E2E | BAIL TRIP LEVER | 1.65 |
64 | 10DKC | ARM SPRING GUIDE (A) COLLAR BUSH | 1.65 |
65 | 10SAN | ARM SPRING GUIDE (A) | 3.85 |
66 | 101D9 | ARM SPRING GUIDE (A) COLLAR | 1.65 |
67 | 10R2P | ARM CAM SPRING | 1.65 |
68 | 10R2E | ARM CAM SPRING GUIDE (B) | 2.75 |
69 | 10RF8 | BAIL MOUNTING COVER | 9.35 |
70 | 10CYU | FIXING BOLT | 2.75 |
71 | 10QPK | ROLLER CLUTCH ASSEMBLY *Cannot be ordered | 11.55 |
72 | 108WZ | O-RING | 3.85 |
73 | 104FW | FRICTION RING | 3.85 |
74 | 10ML2 | FIXING BOLT | 2.75 |
75 | 101NN | PUSH PLATE | 3.85 |
76 | 1028S | WASHER | 1.10 |
77 | 104Q6 | BALL BEARING (7 X 14 X 5) | 13.75 |
78 | 101MP | PINION GEAR | 34.10 |
79 | 104JS | BALL BEARING (6 X 10 X 3) | 13.75 |
80 | 101P0 | BUSH | 1.65 |
81 | 101MT | INTERMEDIATE GEAR SHAFT | 2.75 |
82 | 10E24 | INTERNAL GERI HIT | 1.65 |
83 | 10DVQ | HANDLE SCREW CAP | 22.55 |
84 | 100NQ | BODY ASSEMBLY | 157.30 |
85 | 101N9 | SLIDER GUIDE | 2.75 |
86 | 10JAB | O-RING | 1.65 |
87 | 10SQD | WORM SHAFT | 11.55 |
88 | 10PDA | BALL BEARING (3 X 6 X 2.5) | 13.75 |
89 | 100XZ | WASHER | 2.20 |
90 | 10TK0 | WASHER | 1.65 |
91 | 1015D | BUSH | 3.85 |
92 | 10TNF | O-RING | 1.65 |
93 | 101NK | WORM SHAFT COVER | 2.75 |
94 | 10E8M | FIXING BOLT | 1.65 |
95 | 100NS | MAIN SHAFT ASSEMBLY | 28.05 |
96 | 106VM | WORM SHAFT PIN | 4.95 |
97 | 100CW | WASHER | 2.20 |
98 | 101NW | COLLAR | 3.85 |
99 | 10HAF | WORM SHAFT PIN PUSH PLATE | 1.65 |
100 | 10MT4 | FIXING BOLT | 1.10 |
101 | 1028T | INTERMEDIATE GEAR (SMALL) | 9.35 |
102 | 10160 | BENDING WASHER | 1.10 |
103 | 101MZ | INTERMEDIATE GEAR (LARGE) | 9.35 |
104 | 101N2 | WORM SHAFT GEAR | 9.35 |
105 | 10E3E | BODY GUARD | 11.55 |
106 | 10RZ1 | FIXING BOLT | 3.85 |
107 | 101NX | BODY SEAL | 3.85 |
108 | 101NM | BEARING SEAL | 4.95 |
109 | 10BGE | WASHER | 1.65 |
110 | 104PT | BALL BEARING (8 X 14 X 4) | 13.75 |
111 | 1055G | FIXING BOLT | 1.65 |
112 | 101NH | DRIVE GEAR ASSEMBLY | 45.10 |
113 | 10DKJ | WASHER | 2.20 |
114 | 10RTD | LID | 45.10 |
115 | 10A6N | FIXING BOLT | 1.65 |
116 | 10A6P | FIXING BOLT | 1.65 |
117 | 10THR | HANDLE ASSEMBLY | 168.30 |
118 | 10RTA | HANDLE SHAFT FLANGE | 45.10 |
119 | 100HM | HANDLE SHANK ASSEMBLY | 67.65 |
121 | 104FH | WASHER | 2.20 |
122 | 105BN | BALL BEARING (5 X 9 X 3) | 13.75 |
123 | 101PQ | HANDLE KNOB | 67.65 |
124 | 10KX1 | BALL BEARING (4 X 9 X 4) | 13.75 |
125 | 103E9 | FIXING BOLT | 1.10 |
126 | 10LAB | O-RING | 1.10 |
127 | 101NU | HANDLE CAP | 6.05 |
128 | 109UV | THREAD STOPPER BELT (S) (ACCESSORY) | 6.05 |
130 | 101BJ | LINE ROLLER (WITH BEARING) | 39.60 |
140 | 108W9 | O-RING (3 X 5) | 1.65 |
BNKI | 13R52 | EXPLODED VIEW (ACCESSORY) | 1.65 |
ITOS | 13QPZ | THREAD STOPPER SEAL | 1.65 |
LRKM | 13D1P | LINE ROLLER ASSEMBLY | 19.25 |
MH01 | 13NP6 | NAMEPLATE ON THE BACK OF THE LEG | 3.85 |
OIL2 | 10LQ1 | SSRO-01 OIL (4.5G) | 3.85 |
TRST | 13PMG | INSTRUCTION MANUAL (ACCESSORY) | 1.65 |
