[SHIMANO] Genuine Spare Parts for 18-19 STELLA 4000XG Product Code: 038098 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 18-19 STELLA 4000XG Product Code: 038098 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.141 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/3916

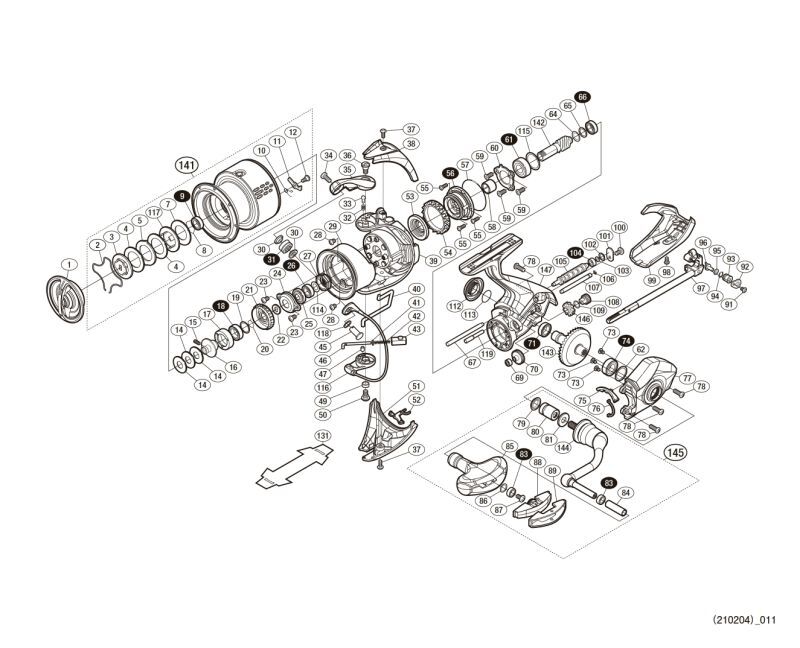

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "56 / ROLLER CLUTCH ASSEMBLY", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13QQ9 REEL BAG (ACCESSORY) 12.65
1 10S17 DRAG KNOB SET 101.20
2 1006X STOPPER SPRING 1.65
3 10QBY OVAL WASHER 9.35
4 102ZP DRAG WASHER (A) 1.65
5 10BCP DRAG WASHER WITH EAR 6.05
7 10C1D DRAG WASHER 1.65
8 10GEW BEARING PULL-OUT STOPPER 1.10
9 104JT BALL BEARING (6 X 10 X 3) 13.75
10 10BQE SPOOL PIN SPRING 1.65
11 10TJX SPOOL PIN 1.65
12 10A6F FIXING BOLT 1.65
14 10BSJ SPOOL WASHER SET 1.10
15 10PN2 SET SCREW 1.65
16 10LTS SPOOL SHAFT BEARING GUIDE 6.05
17 10TQH BEARING COLLAR 2.75
18 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
19 10GHN WASHER 1.65
20 107V2 RATCHET SPRING 1.65
21 107PS DRAG SOUNDING SILRATCHET 2.75
22 103NX SPOOL RECEIVER 1.65
23 103LB FIXING BOLT 1.10
24 1076P RETAINER 2.75
25 107F2 ROTOR FRAME BEARING SEAL 2.75
26 103B3 ROTOR BEARING COLLAR ASSEMBLY 17.05
27 1080X ROTOR NUT 9.35
28 101C6 FIXING BOLT 1.10
29 10S34 ROTOR FLANGE 9.35
30 1020L LINE ROLLER BEARING COLLAR 2.75
31 101BJ LINE ROLLER (WITH BEARING) 39.60
32 10CGZ SOUNDING PIN 1.65
33 106UX CLICK PIN 1.65
34 10K40 FIXING BOLT 2.75
35 10S33 ARM CAM 7.15
36 10DK8 FIXING BOLT 6.05
37 10CYU FIXING BOLT 2.75
38 10033 ARM CAM SPRING COVER 11.55
39 100U3 ROTOR ASSEMBLY 90.20
40 1005L BAIL TRIP LEVER 2.75
41 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
42 10R2P ARM CAM SPRING 1.65
43 10R2E ARM CAM SPRING GUIDE (B) 2.75
45 10L02 ARM FIXED SHAFT 3.85
46 10DJN ARM SPRING GUIDE (A) 3.85
47 10DKC ARM SPRING GUIDE (A) COLLAR BUSH 1.65
49 101D0 BAIL MOUNTING CECUM COLLAR 1.65
50 10S9Q FIXING BOLT 6.05
51 10031 BAIL MOUNTING BRACKET COVER 17.05
52 10TJS BAIL MOUNTING CAM COVER 1.65
53 101D5 ROTOR COLLAR 9.35
54 10DK7 FRICTION RING 3.85
55 101D7 FIXING BOLT 1.65
56 10S2L ROLLER CLUTCH ASSEMBLY *Cannot be ordered 12.65
57 10DKD ROLLER CLUTCH GUIDE SEAL 1.65
58 10DJY ROLLER CLUTCH INNER 3.85
59 10ML6 FIXING BOLT 1.65
60 10DJZ BEARING PUSH PLATE 2.75
61 104VF BALL BEARING (7 X 14 X 5) 13.75
62 101AY WASHER 2.20
64 10053 WASHER (7 X 14 X 5) 1.65
65 10GD8 WASHER 1.10
66 104JQ BALL BEARING (6 X 10 X 3) 7.15
67 1006F SLIDER GUIDE (A) 3.85
69 10PC0 BALL BEARING (2 X 5 X 2.5) 13.75
70 10074 WORM SHAFT GEAR 9.35
71 104PP BALL BEARING(7 X 11 X 3) 13.75
73 1055G FIXING BOLT 1.65
74 104JD BALL BEARING (7 X 13 X 4) 13.75
75 10DJK BAIL TRIP STRIKE 1.65
76 10DKA COVER FLANGE SEAL 2.75
77 10TDB FOOT ASSEMBLY 56.10
78 10M2C FIXING BOLT 1.10
79 10PXU HANDLE SHAFT SEAL 2.75
80 10070 HANDLE SHAFT FLANGE (B) 9.35
81 10FJ6 HANDLE WASHER 1.65
83 104VX BALL BEARING (4 X 7 X 2.5) 13.75
84 1022F KNOB FIXING SHAFT PIPE 3.85
85 1005M HANDLE KNOB 31.90
86 104FH WASHER 2.20
87 103E9 FIXING BOLT 1.10
88 1006T HANDLE CAP 6.05
89 1005Q HANDLE KNOB NAMEPLATE 3.85
91 10MT4 FIXING BOLT 1.10
92 10HAH WORM SHAFT PIN PUSH PLATE 1.65
93 1005H WORM SHAFT PIN COLLAR 2.75
94 108W9 O-RING (3 X 5) 1.65
95 1059U WASHER 1.10
96 106VM WORM SHAFT PIN 4.95
97 10TDY MAIN SHAFT ASSEMBLY 30.80
98 106ZG FIXING BOLT 1.65
99 10032 BODY GUARD 11.55
100 103EB FIXING BOLT 1.65
101 10ATB WORM SHAFT COVER 1.65
102 10TK0 WASHER 1.65
103 10HZ1 WASHER 1.10
104 10PDA BALL BEARING (3 X 6 X 2.5) 13.75
105 1006E WORM SHAFT 11.55
106 10JAB O-RING 1.65
107 1006Z SLIDER GUIDE (B) 3.85
108 10SM7 INTERMEDIATE GEAR (S) 8.25
109 10TJT WASHER 1.65
112 10DK4 HANDLE SCREW CAP 17.05
113 108WA O-RING 1.65
114 101M1 WASHER 1.10
115 107JT FRONT FLANGE BEARING ADJUSTMENT WASHER 1.10
116 10DV2 BAIL ASSEMBLY 45.10
117 10B9D DRAG SMALL SIZE WASHER 2.75
118 1002S ARM FIXED SHAFT WASHER 1.10
119 10TC8 INTERMEDIATE GEAR SHAFT 3.85
131 10PBS LEG PROTECTION SHEET (ACCESSORY) 2.75
141 1006U SPOOL ASSEMBLY 157.30
142 1005R PINION GEAR 20.35
143 1006B DRIVE GEAR 39.60
144 10TDZ HANDLE SHAFT ASSEMBLY 78.65
145 10066 HANDLE ASSEMBLY 123.75
146 1006V INTERMEDIATE GEAR (L) 9.35
147 10S6F BODY ASSEMBLY 168.30
BNKI 13R4S EXPLODED VIEW (ACCESSORIES) 1.65
ITOS 13QPZ THREAD STOPPER SEAL 1.65
LRKM 13D1P LINE ROLLER ASSEMBLY 19.25
MH01 13NJB NAMEPLATE ON THE BACK OF THE LEG 2.75
TRST 13PMG INSTRUCTION MANUAL (ACCESSORY) 1.65
W001 13LN9 ROLLER CLUTCH INNER WASHER 1.10
