[SHIMANO] Genuine Spare Parts for 18-19 STELLA 2500SHG Product Code: 038029 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.66 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.141 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/3916

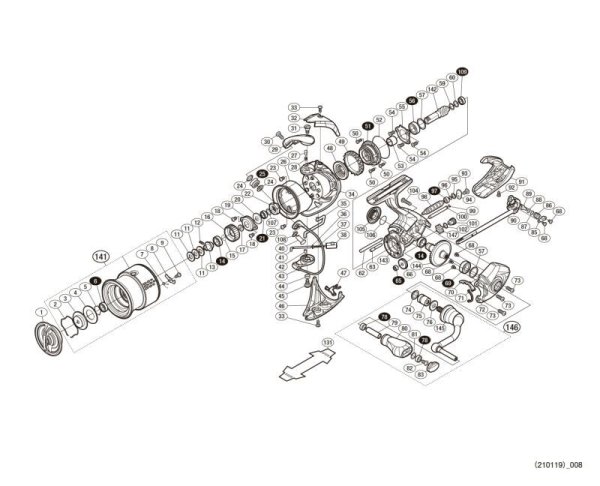

| Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* As for the "51 / ROLLER CLUTCH ASSEMBLY", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.
| No. | S Part No. | Description | Price (USD) |
| *F01 | 10S19 | REEL BAG (ACCESSORY) | 12.65 |
| 1 | 10S17 | DRAG KNOB SET | 101.20 |
| 2 | 10B6F | STOPPER SPRING | 1.65 |
| 3 | 10BCB | OVAL WASHER | 6.05 |
| 4 | 102ZP | DRAG WASHER (A) | 1.65 |
| 5 | 10GEW | BEARING STOPPER | 1.10 |
| 6 | 104JT | BALL BEARING (6 X 10 X 3) | 13.75 |
| 7 | 10BQE | SPOOL PIN SPRING | 1.65 |
| 8 | 10TJX | SPOOL PIN | 1.65 |
| 9 | 10A6F | FIXING BOLT | 1.65 |
| 11 | 10BU8 | SPOOL WASHER SET | 1.10 |
| 12 | 10PN2 | SET SCREW | 1.65 |
| 13 | 10DKF | MAIN SHAFT BEARING GUIDE | 6.05 |
| 14 | 104PP | BALL BEARING (7 X 11 X 3) | 13.75 |
| 15 | 107V2 | RATCHET SPRING | 1.65 |
| 16 | 10SYS | DRAG SOUNDING RATCHET | 2.75 |
| 17 | 103PE | SPOOL HOLDER | 1.65 |
| 18 | 103LB | FIXING BOLT | 1.10 |
| 19 | 1076P | RETAINER | 2.75 |
| 20 | 107L2 | ROTOR BEARING SEAL | 3.85 |
| 21 | 10TD2 | ROTOR BEARING COLLAR ASSEMBLY (WITH BEARING) | 17.05 |
| 22 | 101CY | ROTOR NUT | 9.35 |
| 23 | 101C6 | FIXING BOLT | 1.10 |
| 24 | 1020L | LINE ROLLER BEARING COLLAR | 2.75 |
| 25 | 101BJ | LINE ROLLER (WITH BEARING) | 39.60 |
| 26 | 10TK1 | ROTOR FLANGE | 9.35 |
| 27 | 106UX | CLICK PIN | 1.65 |
| 28 | 10CGZ | SOUNDING SPRING | 1.65 |
| 29 | 101CX | ARM CAM | 7.15 |
| 30 | 10K40 | FIXING BOLT | 2.75 |
| 31 | 10DK8 | FIXING BOLT | 6.05 |
| 32 | 10DK9 | ARM CAM SPRING COVER | 11.55 |
| 33 | 10CYU | FIXING BOLT | 2.75 |
| 34 | 100N2 | ROTOR ASSEMBLY | 90.20 |
| 35 | 101D4 | BAIL TRIP LEVER | 2.75 |
| 36 | 101D9 | ARM SPRING GUIDE (A) COLLAR | 1.65 |
| 37 | 10R2P | ARM CAM SPRING | 1.65 |
| 38 | 10R2E | ARM CAM SPRING GUIDE (B) | 2.75 |
| 40 | 10L02 | ARM FIXED SHAFT | 3.85 |
| 41 | 10DJN | ARM SPRING GUIDE (A) | 3.85 |
| 42 | 10DKC | ARM SPRING GUIDE (A) COLLAR BUSH | 1.65 |
| 43 | 100N1 | BAIL ASSEMBLY | 45.10 |
| 44 | 101D0 | BAIL MOUNTING KECAM COLLAR | 1.65 |
| 45 | 10S9Q | FIXING BOLT | 6.05 |
| 46 | 10DJX | BAIL MOUNTING BRACKET COVER | 17.05 |
| 47 | 10TJS | BAIL MOUNTING CAM COVER | 1.65 |
| 48 | 101D5 | ROTOR COLLAR | 9.35 |
| 49 | 10DK7 | FRICTION RING | 3.85 |
| 50 | 101D7 | FIXING BOLT | 1.65 |
| 51 | 10S2L | ROLLER CLUTCH ASSEMBLY *Cannot be ordered | 12.65 |
| 52 | 10DKD | ROLLER CLUTCH GUIDE SEAL | 1.65 |
| 53 | 10DJY | ROLLER CLUTCH INNER | 3.85 |
| 54 | 10ML6 | FIXING BOLT | 1.65 |
| 55 | 10DJZ | BEARING PUSH PLATE | 2.75 |
| 56 | 1022A | BALL BEARING (7 X 13 X 4) | 13.75 |
| 57 | 101AY | WASHER | 2.20 |
| 59 | 10DJ1 | WASHER | 1.65 |
| 60 | 10HV4 | ADJUSTMENT WASHER | 1.10 |
| 62 | 101CZ | SLIDER GUIDE (A) | 3.85 |
| 63 | 10R3L | INTERMEDIATE GEAR SHAFT | 3.85 |
| 65 | 10PC0 | BALL BEARING (2 X 5 X 2.5) | 13.75 |
| 66 | 10DK0 | WORM SHAFT GEAR | 9.35 |
| 68 | 1055G | FIXING BOLT | 1.65 |
| 69 | 104JD | BALL BEARING (7 X 13 X 4) | 13.75 |
| 70 | 10DJK | BAIL TRIP STRIKE | 1.65 |
| 71 | 10DKA | COVER FLANGE SEAL | 2.75 |
| 72 | 100MP | COVER ASSEMBLY | 56.10 |
| 73 | 10M2C | FIXING BOLT | 1.10 |
| 74 | 10PXU | HANDLE SHAFT SEAL | 2.75 |
| 75 | 10TJW | HANDLE SHAFT FLANGE (B) | 9.35 |
| 76 | 10FJ6 | HANDLE WASHER | 1.65 |
| 78 | 104VX | BALL BEARING (4 X 7 X 2.5) | 13.75 |
| 79 | 1022F | KNOB FIXING SHAFT PIPE | 3.85 |
| 80 | 10TDL | HANDLE KNOB ASSEMBLY | 22.55 |
| 81 | 104FH | WASHER | 2.20 |
| 82 | 103E9 | FIXING BOLT | 1.10 |
| 83 | 101CV | HANDLE CAP | 6.05 |
| 85 | 10HAG | WORM SHAFT PIN PUSH PLATE | 1.65 |
| 86 | 101BY | WORM SHAFT PIN COLLAR | 2.75 |
| 87 | 108W9 | O-RING (3 X 5) | 1.65 |
| 88 | 1059U | WASHER | 1.10 |
| 89 | 106VL | WORM SHAFT PIN | 4.95 |
| 90 | 100MY | MAIN SHAFT ASSEMBLY | 30.80 |
| 91 | 101CL | BODY GUARD | 11.55 |
| 92 | 106ZG | FIXING BOLT | 1.65 |
| 93 | 103EB | FIXING BOLT | 1.65 |
| 94 | 10ATB | WORM SHAFT COVER | 1.65 |
| 95 | 10TK0 | WASHER | 1.65 |
| 96 | 10HZ1 | WASHER | 1.10 |
| 97 | 10PDA | BALL BEARING (3 X 6 X 2.5) | 13.75 |
| 98 | 101CR | WORM SHAFT | 11.55 |
| 99 | 10JAB | O-RING | 1.65 |
| 100 | 101D2 | SLIDER GUIDE (B) | 3.85 |
| 101 | 10DK2 | INTERMEDIATE GEAR (S) | 8.25 |
| 102 | 10TJT | WASHER | 1.65 |
| 104 | 10M2Y | FIXING BOLT | 1.10 |
| 105 | 10DK4 | HANDLE SCREW CAP | 17.05 |
| 106 | 108WA | O-RING | 1.65 |
| 107 | 1026J | WASHER | 1.10 |
| 108 | 1002S | ARM FIXING SHAFT WASHER | 1.10 |
| 109 | 10RKR | BALL BEARING (5 X 8 X 2.5) | 7.15 |
| 131 | 10PBS | LEG PROTECTION SHEET (ACCESSORY) | 2.75 |
| 141 | 10S1C | SPOOL ASSEMBLY | 146.30 |
| 142 | 10S9L | PINION GEAR | 20.35 |
| 143 | 100N0 | BODY ASSEMBLY | 168.30 |
| 144 | 10DKW | DRIVE GEAR | 39.60 |
| 145 | 100MZ | HANDLE SHAFT ASSEMBLY | 78.65 |
| 146 | 1000W | HANDLE ASSEMBLY | 112.20 |
| 147 | 10S9M | INTERMEDIATE GEAR (L) | 9.35 |
| BNKI | 13R4R | EXPLODED VIEW (ACCESSORIES) | 1.65 |
| ITOS | 13QPZ | THREAD STOPPER SEAL | 1.65 |
| LRKM | 13D1P | LINE ROLLER ASSEMBLY | 19.25 |
| MH01 | 13NJ9 | NAMEPLATE ON THE BACK OF THE LEG | 2.75 |
| TRST | 13PMG | INSTRUCTION MANUAL (ACCESSORY) | 1.65 |
| W001 | 13LN9 | ROLLER CLUTCH INNER WASHER | 1.10 |
