[SHIMANO] Genuine Spare Parts for 22 STELLA C5000XG Product Code: 043979 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 22 STELLA C5000XG Product Code: 043979 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.151 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/5354

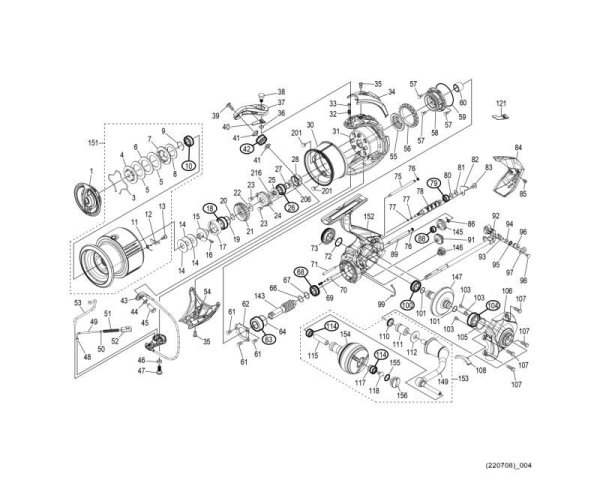

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10EEU DRAG KNOB ASSEMBLY 101.20
3 10T58 STOPPER SPRING 1.10
4 10QBY OVAL WASHER 9.35
5 10R5H DRAG WASHER (A) 2.20
6 10BCP KEY WASHER 6.05
7 10B9D DRAG OVAL WASHER 2.75
8 10R4W DRAG WASHER (B) 2.20
9 10GEW BEARING EXTRACTION STOPPER 1.10
10 104JT BALL BEARING (6 X 10 X 3) 13.75
11 10BQE SPOOL PIN SPRING 1.65
12 10TJX SPOOL PIN 1.65
13 10A6F FIXING BOLT 1.65
14 101AV SPOOL WASHER (A) 2.20
15 10LTS SPOOL SHAFT BEARING GUIDE 6.05
16 10PN2 SET SCREW 1.65
17 10TQH BEARING COLLAR 2.75
18 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
19 10GHN WASHER 1.65
20 107V2 RATCHET SPRING 1.65
21 107PS DRAG SOUNDING RATCHET 2.75
22 103NX SPOOL RECEIVER 1.65
23 103LB FIXING BOLT 1.10
24 1076N RETAINER 2.75
25 10SPZ ROTOR BEARING SEAL 3.85
26 104JV BALL BEARING (6 X 10 X 3) 13.75
27 10SQ1 ROTOR BEARING COLLAR 4.40
28 10SQ2 ROTOR NUT 9.35
30 1011W ROTOR FLANGE 9.35
31 10DRQ ROTOR ASSEMBLY 108.90
32 10CGZ CLICK SPRING 1.65
33 106UX CLICK PIN 1.65
34 1011M ARM CAM SPRING COVER 13.20
35 10CYU FIXING BOLT 2.75
36 10192 ARM CAM ADJUSTMENT WASHER 1.10
37 1011J ARM CAM 8.80
38 10R59 FIXING BOLT 14.85
39 10K40 FIXING BOLT 2.75
40 10SQ4 ARM CAM FIN 1.10
41 1020L LINE ROLLER BEARING COLLAR 2.75
42 101BJ LINE ROLLER (WITH BEARING) 39.60
43 10DSW BAIL ASSEMBLY 48.40
44 1002S ARM FIXED SHAFT WASHER 1.10
45 10RKV ARM FIXING SHAFT 6.05
46 101D0 BAIL MOUNTING KECAM COLLAR 1.65
47 10R4T FIXING BOLT 14.30
48 10DKC ARM SPRING GUIDE (A) COLLAR BUSH 1.65
49 10SAN ARM SPRING GUIDE (A) 3.85
50 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
51 10R2P ARM CAM SPRING 1.65
52 10R2E ARM CAM SPRING GUIDE (B) 2.75
53 10SED BAIL TRIP LEVER 2.75
54 1012D BAIL MOUNTING COVER 17.05
55 101D5 ROTOR COLLAR 9.35
56 10DK7 FRICTION RING 3.85
57 101D7 FIXING BOLT 1.65
58 10S2L ROLLER CLUTCH ASSEMBLY 12.65
59 10DKD ROLLER CLUTCH GUIDE SEAL 1.65
60 10DJY ROLLER CLUTCH INNER 3.85
61 10ML6 FIXING BOLT 1.65
62 10R53 BEARING PUSH PLATE 2.75
63 104VF BALL BEARING (7 X 14 X 5) 13.75
64 107JT FRONT FLANGE BEARING ADJUSTMENT WASHER 1.10
66 10053 BEARING WASHER (7 X 14 X 5) 1.65
67 10GD8 BEARING WASHER 1.10
68 10RG4 BALL BEARING (6 X 10 X 3) 13.75
69 10R5T INTERMEDIATE GEAR SPRING 1.10
70 10SEC INTERMEDIATE GEAR SHAFT 2.75
71 13XY6 INTERMEDIATE GEAR SHAFT (C) 2.75
72 108WA O-RING 1.65
73 10R5R HANDLE SCREW CAP 17.05
75 10SQ5 SLIDER GUIDE (A) 3.85
76 10JAB O-RING 1.65
77 10092 O-RING 1.65
78 10SQ6 WORM SHAFT 11.55
79 10PDA BALL BEARING (3 X 6 X 2.5) 13.75
80 100XZ WASHER 2.20
81 10TK0 WASHER 1.65
82 10SDX WORM SHAFT COVER 3.30
83 103EB FIXING BOLT 1.65
84 1011Z BODY GUARD 11.55
85 106ZG FIXING BOLT 1.65
86 10R5N WORM SHAFT GEAR SPRING 2.20
88 10PC0 BALL BEARING (2 X 5 X 2.5) 13.75
89 10SPV SLIDER GUIDE (B) 3.85
91 10R4Q INTERMEDIATE GEAR (C) 8.25
92 10DRR MAIN SHAFT ASSEMBLY 30.80
93 106VM WORM SHAFT PIN 4.95
94 100CW WASHER 2.20
95 108W9 O-RING (3 X 5) 1.65
96 1005H WORM SHAFT PIN COLLAR 2.75
97 10HAH WORM SHAFT PIN PUSH PLATE 1.65
98 10MT4 FIXING BOLT 1.10
99 10DKA COVER FLANGE SEAL 2.75
100 10R5U BALL BEARING (7 X 11 X 3) 13.75
101 1009S O-RING 1.65
103 1055G FIXING BOLT 1.65
104 104PT BALL BEARING (8 X 14 X 4) 13.75
105 100W9 WASHER 2.75
106 10DRV COVER ASSEMBLY 56.10
107 10SJV FIXING BOLT 1.65
108 10QWW BAIL TRIP STRIKE 1.65
110 10PXU HANDLE SHAFT SEAL 2.75
111 10070 HANDLE SHAFT FLANGE (B) 9.35
112 10FJ6 HANDLE WASHER 1.65
114 104VX BALL BEARING (4 X 7 X 2.5) 13.75
115 1022F KNOB FIXED SHAFT PIPE 3.85
117 104FH WASHER 2.20
118 103E9 FIXING BOLT 1.10
121 10SE2 ARM CAM FIN (ACCESSORY) 1.10
143 10SEH PINION GEAR 21.45
145 10R5L WORM SHAFT GEAR 9.35
146 10SQA INTERMEDIATE GEAR (LARGE) 8.25
147 10SQC DRIVE GEAR 40.70
149 10E18 HANDLE SHANK ASSEMBLY 80.30
151 10E19 SPOOL ASSEMBLY 172.70
152 10E1D BODY ASSEMBLY 176.00
153 10E1E HANDLE ASSEMBLY 151.25
154 10E1A HANDLE KNOB ASSEMBLY 56.10
155 10LAB O-RING 1.10
156 10SQ9 HANDLE CAP 6.05
201 103C8 FIXING BOLT 1.10
206 101M1 WASHER 1.10
216 13XFQ WASHER 1.10
*F01 13QTL REEL BAG (ACCESSORY) 18.70
BNKI 13QZE EXPLODED VIEW (ACCESSORY) 1.65
LRKM 13D1P LINE ROLLER ASSEMBLY 19.25
MH01 13ND8 NAMEPLATE ON THE BACK OF THE LEG 2.75
TRST 13PMG INSTRUCTION MANUAL (ACCESSORY) 1.65
