[SHIMANO] Genuine Spare Parts for 22 STELLA 4000MHG Product Code: 043955 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.131 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/5354

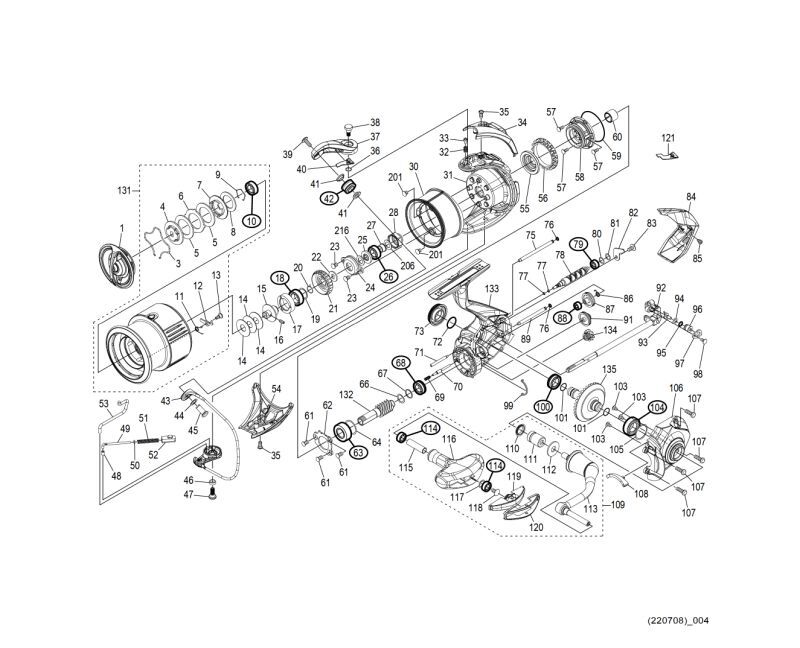

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
1 | 10EEU | DRAG KNOB ASSEMBLY | 101.20 |
3 | 10T58 | STOPPER SPRING | 1.10 |
4 | 10QBY | OVAL WASHER | 9.35 |
5 | 10R5H | DRAG WASHER (A) | 2.20 |
6 | 10BCP | KEY WASHER | 6.05 |
7 | 10B9D | DRAG OVAL WASHER | 2.75 |
8 | 10R4W | DRAG WASHER (B) | 2.20 |
9 | 10GEW | BEARING EXTRACTION STOPPER | 1.10 |
10 | 104JT | BALL BEARING (6 X 10 X 3) | 13.75 |
11 | 10BQE | SPOOL PIN SPRING | 1.65 |
12 | 10TJX | SPOOL PIN | 1.65 |
13 | 10A6F | FIXING BOLT | 1.65 |
14 | 101AV | SPOOL WASHER (A) | 2.20 |
15 | 10LTS | SPOOL SHAFT BEARING GUIDE | 6.05 |
16 | 10PN2 | SET SCREW | 1.65 |
17 | 10TQH | BEARING COLLAR | 2.75 |
18 | 10EX8 | BALL BEARING (8 X 12 X 3.5) | 13.75 |
19 | 10GHN | WASHER | 1.65 |
20 | 107V2 | RATCHET SPRING | 1.65 |
21 | 107PS | DRAG SOUNDING RATCHET | 2.75 |
22 | 103NX | SPOOL RECEIVER | 1.65 |
23 | 103LB | FIXING BOLT | 1.10 |
24 | 1076N | RETAINER | 2.75 |
25 | 10SPZ | ROTOR BEARING SEAL | 3.85 |
26 | 104JV | BALL BEARING (6 X 10 X 3) | 13.75 |
27 | 10SQ1 | ROTOR BEARING COLLAR | 4.40 |
28 | 10SQ2 | ROTOR NUT | 9.35 |
30 | 1011W | ROTOR FLANGE | 9.35 |
31 | 10DRQ | ROTOR ASSEMBLY | 108.90 |
32 | 10CGZ | CLICK SPRING | 1.65 |
33 | 106UX | CLICK PIN | 1.65 |
34 | 1011M | ARM CAM SPRING COVER | 13.20 |
35 | 10CYU | FIXING BOLT | 2.75 |
36 | 10192 | ARM CAM ADJUSTMENT WASHER | 1.10 |
37 | 1011J | ARM CAM | 8.80 |
38 | 10R59 | FIXING BOLT | 14.85 |
39 | 10K40 | FIXING BOLT | 2.75 |
40 | 10SQ4 | ARM CAM FIN | 1.10 |
41 | 1020L | LINE ROLLER BEARING COLLAR | 2.75 |
42 | 101BJ | LINE ROLLER (WITH BEARING) | 39.60 |
43 | 10DSW | BAIL ASSEMBLY | 48.40 |
44 | 1002S | ARM FIXED SHAFT WASHER | 1.10 |
45 | 10RKV | ARM FIXING SHAFT | 6.05 |
46 | 101D0 | BAIL MOUNTING KECAM COLLAR | 1.65 |
47 | 10R4T | FIXING BOLT | 14.30 |
48 | 10DKC | ARM SPRING GUIDE (A) COLLAR BUSH | 1.65 |
49 | 10SAN | ARM SPRING GUIDE (A) | 3.85 |
50 | 101D9 | ARM SPRING GUIDE (A) COLLAR | 1.65 |
51 | 10R2P | ARM CAM SPRING | 1.65 |
52 | 10R2E | ARM CAM SPRING GUIDE (B) | 2.75 |
53 | 10SED | BAIL TRIP LEVER | 2.75 |
54 | 1012D | BAIL MOUNTING COVER | 17.05 |
55 | 101D5 | ROTOR COLLAR | 9.35 |
56 | 10DK7 | FRICTION RING | 3.85 |
57 | 101D7 | FIXING BOLT | 1.65 |
58 | 10S2L | ROLLER CLUTCH ASSEMBLY | 12.65 |
59 | 10DKD | ROLLER CLUTCH GUIDE SEAL | 1.65 |
60 | 10DJY | ROLLER CLUTCH INNER | 3.85 |
61 | 10ML6 | FIXING BOLT | 1.65 |
62 | 10R53 | BEARING PUSH PLATE | 2.75 |
63 | 104VF | BALL BEARING (7 X 14 X 5) | 13.75 |
64 | 107JT | FRONT FLANGE BEARING ADJUSTMENT WASHER | 1.10 |
66 | 10053 | BEARING WASHER (7 X 14 X 5) | 1.65 |
67 | 10GD8 | BEARING WASHER | 1.10 |
68 | 10RG4 | BALL BEARING (6 X 10 X 3) | 13.75 |
69 | 10R5T | INTERMEDIATE GEAR SPRING | 1.10 |
70 | 10SEC | INTERMEDIATE GEAR SHAFT | 2.75 |
71 | 13XY6 | INTERMEDIATE GEAR SHAFT (C) | 2.75 |
72 | 108WA | O-RING | 1.65 |
73 | 10R5R | HANDLE SCREW CAP | 17.05 |
75 | 10SQ5 | SLIDER GUIDE (A) | 3.85 |
76 | 10JAB | O-RING | 1.65 |
77 | 10092 | O-RING | 1.65 |
78 | 10SQ6 | WORM SHAFT | 11.55 |
79 | 10PDA | BALL BEARING (3 X 6 X 2.5) | 13.75 |
80 | 100XZ | WASHER | 2.20 |
81 | 10TK0 | WASHER | 1.65 |
82 | 10SDX | WORM SHAFT COVER | 3.30 |
83 | 103EB | FIXING BOLT | 1.65 |
84 | 1011Z | BODY GUARD | 11.55 |
85 | 106ZG | FIXING BOLT | 1.65 |
86 | 10R5N | WORM SHAFT GEAR SPRING | 2.20 |
87 | 100AP | WORM SHAFT GEAR | 9.35 |
88 | 10PC0 | BALL BEARING (2 X 5 X 2.5) | 13.75 |
89 | 10SPV | SLIDER GUIDE (B) | 3.85 |
91 | 10R4Q | INTERMEDIATE GEAR (C) | 8.25 |
92 | 10DRR | MAIN SHAFT ASSEMBLY | 30.80 |
93 | 106VM | WORM SHAFT PIN | 4.95 |
94 | 100CW | WASHER | 2.20 |
95 | 108W9 | O-RING (3 X 5) | 1.65 |
96 | 1005H | WORM SHAFT PIN COLLAR | 2.75 |
97 | 10HAH | WORM SHAFT PIN PUSH PLATE | 1.65 |
98 | 10MT4 | FIXING BOLT | 1.10 |
99 | 10DKA | COVER FLANGE SEAL | 2.75 |
100 | 10R5U | BALL BEARING (7 X 11 X 3) | 13.75 |
101 | 1009S | O-RING | 1.65 |
103 | 1055G | FIXING BOLT | 1.65 |
104 | 104PT | BALL BEARING (8 X 14 X 4) | 13.75 |
105 | 100W9 | WASHER | 2.75 |
106 | 10DRV | COVER ASSEMBLY | 56.10 |
107 | 10SJV | FIXING BOLT | 1.65 |
108 | 10QWW | BAIL TRIP STRIKE | 1.65 |
109 | 10DRU | HANDLE ASSEMBLY | 123.75 |
110 | 10PXU | HANDLE SHAFT SEAL | 2.75 |
111 | 10070 | HANDLE SHAFT FLANGE (B) | 9.35 |
112 | 10FJ6 | HANDLE WASHER | 1.65 |
113 | 10DRT | HANDLE SHANK ASSEMBLY | 80.30 |
114 | 104VX | BALL BEARING (4 X 7 X 2.5) | 13.75 |
115 | 1022F | KNOB FIXING SHAFT PIPE | 3.85 |
116 | 10SQ3 | HANDLE KNOB | 31.90 |
117 | 104FH | HANDLE WASHER | 2.20 |
118 | 103E9 | FIXING BOLT | 1.10 |
119 | 10SDW | HANDLE CAP | 6.05 |
120 | 1005Q | HANDLE KNOB NAMEPLATE | 3.85 |
121 | 10SE2 | ARM CAM FIN (ACCESSORY) | 1.10 |
131 | 13CC8 | SPOOL ASSEMBLY | 172.70 |
132 | 13LAR | PINION GEAR | 21.45 |
133 | 13DDC | BODY ASSEMBLY | 176.00 |
134 | 13MPP | INTERMEDIATE GEAR (LARGE) | 8.25 |
135 | 13LGN | DRIVE GEAR | 40.70 |
201 | 103C8 | FIXING BOLT | 1.10 |
206 | 101M1 | WASHER | 1.10 |
216 | 13XFQ | WASHER | 1.10 |
*F01 | 13QTL | REEL BAG (ACCESSORY) | 18.70 |
BNKI | 13QZE | EXPLODED VIEW (ACCESSORY) | 1.65 |
LRKM | 13D1P | LINE ROLLER ASSEMBLY | 19.25 |
MH01 | 13ND6 | NAMEPLATE ON THE BACK OF THE LEG | 2.75 |
TRST | 13PMG | INSTRUCTION MANUAL (ACCESSORY) | 1.65 |
