[SHIMANO] Genuine Spare Parts for 22 STELLA 2500SHG Product Code: 043887 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.131 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/5354

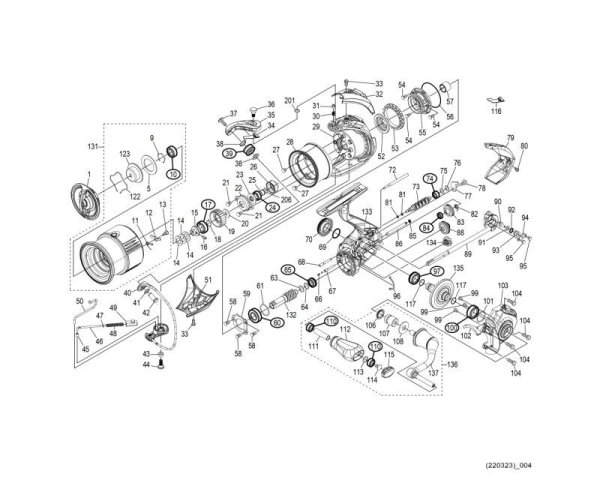

| Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
| No. | S Part No. | Description | Price (USD) |
| *F01 | 13QTJ | REEL BAG (ACCESSORY) | 18.70 |
| 1 | 10EEU | DRAG KNOB ASSEMBLY | 101.20 |
| 5 | 10R5H | DRAG WASHER (A) | 2.20 |
| 9 | 10GEW | BEARING PULL-OFF STOPPER | 1.10 |
| 10 | 104JT | BALL BEARING (6 X 10 X 3) | 13.75 |
| 11 | 10BQE | SPOOL PIN SPRING | 1.65 |
| 12 | 10TJX | SPOOL PIN | 1.65 |
| 13 | 10A6F | FIXING BOLT | 1.65 |
| 14 | 10DHG | SPOOL WASHER | 2.20 |
| 15 | 10DKF | MAIN SHAFT BEARING GUIDE | 6.05 |
| 16 | 10PN2 | SET SCREW | 1.65 |
| 17 | 104PP | BALL BEARING (7 X 11 X 3) | 13.75 |
| 18 | 107V2 | RATCHET SPRING | 1.65 |
| 19 | 10SYS | DRAG NOISE EMITTING RATCHET | 2.75 |
| 20 | 103PE | SPOOL HOLDER | 1.65 |
| 21 | 103LB | FIXING BOLT | 1.10 |
| 22 | 1076N | RETAINER | 2.75 |
| 23 | 1004T | ROTOR BEARING SEAL | 3.85 |
| 24 | 104K1 | BALL BEARING (5 X 8 X 2.5) | 13.75 |
| 25 | 10R5P | ROTOR BEARING COLLAR | 4.40 |
| 26 | 10R5F | ROTOR NUT | 9.35 |
| 27 | 101C6 | FIXING BOLT | 1.10 |
| 28 | 10R4P | ROTOR FLANGE | 9.35 |
| 29 | 10SA6 | ROTOR ASSEMBLY | 108.90 |
| 30 | 10CGZ | CLICK SPRING | 1.65 |
| 31 | 106UX | CLICK PIN | 1.65 |
| 32 | 10R4X | ARM CAM SPRING COVER | 13.20 |
| 33 | 10CYU | FIXING BOLT | 2.75 |
| 34 | 10R52 | ARM CAM FIN | 1.10 |
| 35 | 10R4S | ARM CAM | 8.80 |
| 36 | 10R59 | FIXING BOLT | 14.85 |
| 37 | 10K40 | FIXING BOLT | 2.75 |
| 38 | 1020L | LINE ROLLER BEARING COLLAR | 2.75 |
| 39 | 101BJ | LINE ROLLER (WITH BEARING) | 39.60 |
| 40 | 10DQP | BAIL ASSEMBLY | 48.40 |
| 41 | 1002S | ARM FIXING SHAFT WASHER | 1.10 |
| 42 | 10RKV | ARM FIXING SHAFT | 6.05 |
| 43 | 101D0 | BAIL MOUNTING KECAM COLLAR | 1.65 |
| 44 | 10R4T | FIXING BOLT | 14.30 |
| 45 | 10DKC | ARM SPRING GUIDE (A) COLLAR BUSH | 1.65 |
| 46 | 10SAN | ARM SPRING GUIDE (A) | 3.85 |
| 47 | 101D9 | ARM SPRING GUIDE (A) COLLAR | 1.65 |
| 48 | 10R2P | ARM CAM SPRING | 1.65 |
| 49 | 10R2E | ARM CAM SPRING GUIDE (B) | 2.75 |
| 50 | 10R58 | BAIL TRIP LEVER | 2.75 |
| 51 | 10R4Z | BAIL MOUNTING COVER | 17.05 |
| 52 | 101D5 | ROTOR COLLAR | 9.35 |
| 53 | 10DK7 | FRICTION RING | 3.85 |
| 54 | 101D7 | FIXING BOLT | 1.65 |
| 55 | 10S2L | ROLLER CLUTCH ASSEMBLY | 12.65 |
| 56 | 10DKD | ROLLER CLUTCH GUIDE SEAL | 1.65 |
| 57 | 10DJY | ROLLER CLUTCH INNER | 3.85 |
| 58 | 10ML6 | FIXING BOLT | 1.65 |
| 59 | 10R53 | BEARING PUSH PLATE | 2.75 |
| 60 | 1022A | BALL BEARING (7 X 13 X 4) | 13.75 |
| 61 | 10RYR | BEARING WASHER (7×13×4) | 1.10 |
| 63 | 10DJ1 | ADJUSTMENT WASHER | 1.65 |
| 64 | 10HV4 | ADJUSTMENT WASHER | 1.10 |
| 65 | 10R50 | BALL BEARING (5 X 8 X 2.5) | 13.75 |
| 66 | 10R5T | INTERMEDIATE GEAR SPRING | 1.10 |
| 67 | 10R5K | INTERMEDIATE GEAR SHAFT | 2.75 |
| 68 | 13XDV | INTERMEDIATE GEAR SHAFT (C) | 2.75 |
| 69 | 108WA | O-RING | 1.65 |
| 70 | 10R5R | HANDLE SCREW CAP | 17.05 |
| 72 | 10R4U | SLIDER GUIDE (A) | 3.85 |
| 73 | 10R55 | WORM SHAFT | 11.55 |
| 74 | 10PDA | BALL BEARING (3 X 6 X 2.5) | 13.75 |
| 75 | 100XZ | WASHER | 2.20 |
| 76 | 10TK0 | WASHER | 1.65 |
| 77 | 10R5G | WORM SHAFT COVER | 3.30 |
| 78 | 103EB | FIXING BOLT | 1.65 |
| 79 | 10R5V | BODY GUARD | 11.55 |
| 80 | 106ZG | FIXING BOLT | 1.65 |
| 81 | 10092 | O-RING | 1.65 |
| 82 | 10R5N | WORM SHAFT GEAR SPRING | 2.20 |
| 83 | 10R5L | WORM SHAFT GEAR | 9.35 |
| 84 | 10R5Q | BALL BEARING (2 X 5 X 1.5) | 7.15 |
| 85 | 10JAB | O RING | 1.65 |
| 86 | 101D2 | SLIDER GUIDE (B) | 3.85 |
| 88 | 10R4Q | INTERMEDIATE GEAR (C) | 8.25 |
| 89 | 100A7 | MAIN SHAFT ASSEMBLY | 30.80 |
| 90 | 106VL | WORM SHAFT PIN | 4.95 |
| 91 | 100CW | WASHER | 2.20 |
| 92 | 108W9 | O-RING (3 X 5) | 1.65 |
| 93 | 101BY | WORM SHAFT PIN COLLAR | 2.75 |
| 94 | 10HAG | WORM SHAFT PIN PUSH PLATE | 1.65 |
| 95 | 10R4V | FIXING BOLT | 1.65 |
| 96 | 10DKA | COVER FLANGE SEAL | 2.75 |
| 97 | 10R5U | BALL BEARING (7 X 11 X 3) | 13.75 |
| 99 | 1055G | FIXING BOLT | 1.65 |
| 100 | 10EX8 | BALL BEARING (8 X 12 X 3.5) | 13.75 |
| 101 | 1022D | BAIL TRIP STRIKE | 2.75 |
| 102 | 10R4Y | BAIL TRIP STRIKE | 1.65 |
| 103 | 10S7D | COVER ASSEMBLY | 56.10 |
| 104 | 10M2C | FIXING BOLT | 1.10 |
| 106 | 10PXU | HANDLE SHAFT SEAL | 2.75 |
| 107 | 100A0 | HANDLE SHAFT FLANGE (B) | 6.05 |
| 108 | 10FJ6 | HANDLE WASHER | 1.65 |
| 110 | 104VX | BALL BEARING (4 X 7 X 2.5) | 13.75 |
| 111 | 1022F | KNOB FIXING SHAFT PIPE | 3.85 |
| 112 | 100A8 | HANDLE KNOB ASSEMBLY | 22.55 |
| 113 | 104FH | WASHER | 2.20 |
| 114 | 103E9 | FIXING BOLT | 1.10 |
| 115 | 101CV | HANDLE CAP | 6.05 |
| 116 | 10TD4 | ARM CAM FIN (ACCESSORY) | 1.10 |
| 117 | 1009S | O-RING | 1.65 |
| 122 | 10B6F | STOPPER SPRING | 1.65 |
| 123 | 10BCB | OVAL WASHER | 6.05 |
| 131 | 10S7J | SPOOL ASSEMBLY | 161.70 |
| 132 | 10R5J | PINION GEAR | 21.45 |
| 133 | 10DQU | BODY ASSEMBLY | 171.60 |
| 134 | 13YJ8 | INTERMEDIATE GEAR (L) | 8.25 |
| 135 | 10R5A | DRIVE GEAR | 40.70 |
| 136 | 10S7K | HANDLE ASSEMBLY | 112.20 |
| 137 | 10T2E | HANDLE SHANK ASSEMBLY | 80.30 |
| 201 | 10192 | ARM CAM ADJUSTMENT WASHER | 1.10 |
| 206 | 101FF | WASHER | 1.65 |
| BNKI | 13QZB | EXPLODED VIEW (ACCESSORIES) | 1.65 |
| LRKM | 13D1P | LINE ROLLER ASSEMBLY | 19.25 |
| MH01 | 13NCA | NAMEPLATE ON BACK OF LEG | 2.75 |
| TRST | 13PMG | INSTRUCTION MANUAL (ACCESSORY) | 1.65 |
