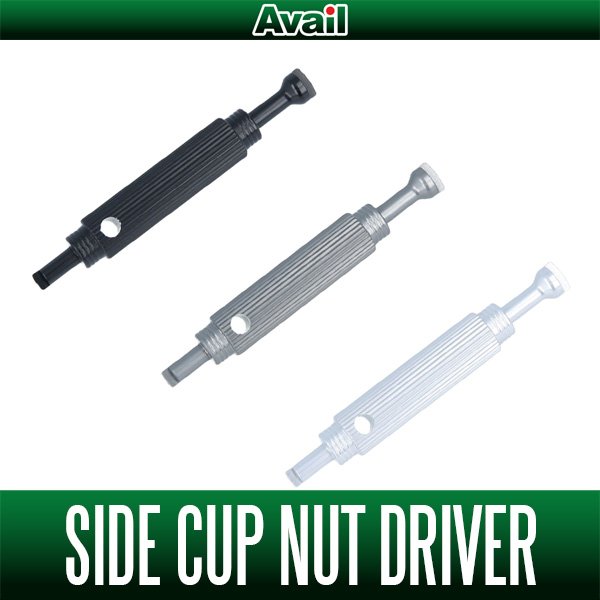

[Avail] Abu Side Cup Nut Driver (Flat Head Screwdriver / Slot Head Screwdriver) for Ambassadeur 2500 series

Description

Flat head screwdriver for use with the Ambassadeur 2500 series.
Two different large and small blades are located on the top and bottom of the body, and the side cup nuts and pilot guide caps can be removed.
In addition, the blade shape is processed in a rounded shape to prevent the screwdriver blade from slipping and damaging the product when removing it.
Please use it for maintenance of your reels.


Color


BLACK


GUNMETAL


SILVER


Spec

Material
Duralumin

Main size
Overall Length: 70mm
Grip Diameter: 10.0mm
Weight: 9.5g
Shaft Length: (Large)11.6mm/(Small)7.3mm
Blade Width: (Large)7mm/(Small)4mm
Blade Thickness: (Large)1.35mm/(Small)0.83mm

Compatibility
Side Cup Nut Set and Pilot Guide Cap for 1500 Series/2500 Series/3500 Series
Side Cup Nut and Pilot Guide Cap on handle side for 4000 to 6000 series
*Please note that parts other than those listed above may damage the product due to the narrow minus portion of the screw head.




Large tip: Handle side Side Cup Nut/Pilot Guide Cap can be removed.



The Side Cup Nut on the handle side can be removed using the large tip.



The Pilot Guide Cap can be removed using the large tip.



Small tip: Side Cup Nut on the perming side can be removed.



Side Cup Nut on the perming side can be removed using the small tip.
*Please note that parts other than those listed above may damage the product due to the narrow minus portion of the screw head.


Attention

Side Cup Nut flat head screwdrivers are anodized and colored.
Please note that due to the manufacturing process, there may be some color loss on the exterior.
Since a layer of anodized aluminum is also formed on the part where the base color appears, there is no worry about rust, etc.
*Please note that parts other than those listed above may damage the product due to the narrow minus portion of the screw head.
