[Avail] ABU/ISUZU/DAIWA Pure Handle S Type 2 [HD-PURE Type 2] *AVHADA

[Avail] ABU/ISUZU/DAIWA Pure Handle S Type 2 [HD-PURE Type 2] *AVHADA

Our Selling Price: US$55.44 [Regular Price: US$92.40]

Prices vary according to options.

Handle length:
Handle color:
Retainer Type and Color (B type, 9-10 mm type):

Our Selling Price: US$55.44 [Regular Price: US$92.40]

Quantity:

Item Description

Pure Handle S for ABU/ISUZU/DAIWA

Model Name

HD-PURE-60BB Type-2 (Knob Shaft Center Distance 60mm)
HD-PURE-65BB Type-2 (Knob Shaft Center Distance 65mm)
HD-PURE-70BB Type-2 (Knob Shaft Center Distance 70mm)
HD-PURE-75BB Type-2 (Knob Shaft Center Distance 75mm)
HD-PURE-80BB Type-2 (Knob Shaft Center Distance 80mm)


Product Description


HD-PURE-60BB Type-2 Installation example: ABU 2500C


HD-PURE-70BB Type-2 Installation example: SHIMANO Bantam 200


HD-PURE-75BB Type-2 Installation example: ABU 5500C


The highly acclaimed "Pure Handle S" was renewed in June 2022.
Like the old type, it is a lightweight handle using a machined plate of super duralumin with super duralumin knob shafts.
Grooves were added to the back of the handle, reducing the weight by more than 1g for each model compared to the old type.

Like the old type, it can be mounted on reels with M8-size handle holes such as ABU, ISUZU, DAIWA, and old Bantam reels.
The simple design allows for customization without losing the original image of the reel.
Each handle knob can be equipped with two ball bearings for smooth and silky reeling.

Only the short-type handle knob from Avail is compatible.
Please note that even if it is an Avail handle knob, regular-size products are not compatible.
Choose your preferred short knob material and color from "Related Products" and purchase it separately.


Renewal Details


Old Product: Pure Handle S HD-S-PURE-65/70/75/80BB


New Product: HD-PURE-60/65/70/75/80BB Type-2

The new product has grooves on the back, reducing the weight by more than 1g for each model compared to the old product.


Retainer Selection

You can choose the type and color of the included retainer.
Retainer B type and Retainer 9-10mm type are compatible.


Retainer B Type


Retainer 9-10mm Type

*Retainer 9-10mm type is only compatible with the Avail Pure Handle series.


Retainer B Type Colors


Black

Gunmetal

Silver

Champagne
Gold

Gold

Orange

Red

Pink

Purple

Blue

Sky Blue

Green

Brown

Chrome

Gold-Plated


Retainer 9-10mm Type Colors


Black

Gunmetal

Silver

Champagne
Gold

Gold

Orange

Red

Pink

Purple

Blue

Sky Blue

Green

Brown

Chrome

Gold-Plated



Handle Set Accessories



Accessories:
Stainless steel ball bearings x 4 (Included in products received before April 2024)
Handle nut adjustment washers x 2
Retainer x 1 (Selectable at the time of order)
Retainer fixing titanium 64 screw x 1
Handle knob fixing screws x 2
Handle knob adjustment washers x 4



Accessories:
Retainer fixing screw x 1
Handle knob adjustment washers x 4
Handle knob fixing screws x 2
Resin bushings (7×4×2.5) x 4*
Handle nut adjustment washers x 2
Retainer x 1 (Selectable at the time of order)
*Note: Starting with shipments received in April 2024, the "stainless steel ball bearings" accessory will be changed to "resin bushings."
Due to mixed inventory, we cannot guarantee which accessory will be included at the time of shipment.
Please understand this before purchasing.



Colors


60mm Black (HD-PURE-60BB Type2 Black)


60mm Chrome (HD-PURE-60BB Type2 Chrome)


60mm Gold-Plated (HD-PURE-60BB Type2 Gold-Plated)


65mm Black (HD-PURE-65BB Type2 Black)


65mm Chrome (HD-PURE-65BB Type2 Chrome)


65mm Gold-Plated (HD-PURE-65BB Type2 Gold-Plated)


70mm Black (HD-PURE-70BB Type2 Black)


70mm Chrome (HD-PURE-70BB Type2 Chrome)


70mm Gold-Plated (HD-PURE-70BB Type2 Gold-Plated)


75mm Black (HD-PURE-75BB Type2 Black)


75mm Chrome (HD-PURE-75BB Type2 Chrome)


75mm Gold-Plated (HD-PURE-75BB Type2 Gold-Plated)


80mm Black (HD-PURE-80BB Type2 Black)


80mm Chrome (HD-PURE-80BB Type2 Chrome)


80mm Gold-Plated (HD-PURE-80BB Type2 Gold-Plated)


Specifications

Knob Shaft Type:
Short Knob Shaft

Material:
Handle, Knob Shaft: Super Duralumin

Bearing Size:
7 x 4 x 2.5mm x 4pcs

Compatible Reels:
Reels with M8 handles from ABU, ISUZU, DAIWA, etc.
Megabass Pagani Series
SHIMANO Bantam Series

Note: Not compatible with ISUZU BC520SSS Works Tune ABC and BC521SSS Works Tune ABC.

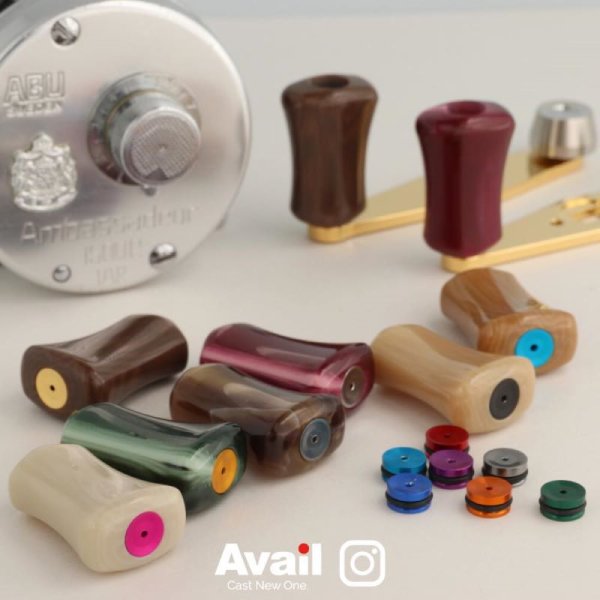

About Handle Knobs

Only the short-type handle knob from Avail is compatible.
Please note that even if it is an Avail handle knob, regular-size products are not compatible.
Choose your preferred short knob material and color from "Related Products" and purchase it separately.


Length

The length is the distance between the centers of the knob shafts.


Weight

The weights in the table below include the handle body, retainer, two knob fixing screws, and a retainer fixing screw.
The weight of the bearings and handle knobs are not included.

Weight:
Pure Handle S for Baitcasting Reels

HD-S-PURE-60: 7.1g
HD-S-PURE-65: 7.4g
HD-S-PURE-70: 7.7g
HD-S-PURE-75: 8.0g
HD-S-PURE-80: 8.3g


Gallery
