[Avail] DAIWA/ABU/ISUZU Single Pure (Standard) Handle S [HD-AB-SPS] 32.5, 35, 37.5, 40mm *AVHADA

[Avail] DAIWA/ABU/ISUZU Single Pure (Standard) Handle S [HD-AB-SPS] 32.5, 35, 37.5, 40mm *AVHADA

Our Selling Price: US$55.44 [Regular Price: US$92.40]

Prices vary according to options.

Handle Length:
Color:
Retainer Type and Color (B type, 9-10 mm type):

Our Selling Price: US$55.44 [Regular Price: US$92.40]

Quantity:

Item Description

Single Pure Handle S for ABU/ISUZU/DAIWA

Model Name

HD-AB-SPS-325 (32.5mm from knob shaft to mounting hole center)
HD-AB-SPS-350 (35mm from knob shaft to mounting hole center)
HD-AB-SPS-375 (37.5mm from knob shaft to mounting hole center)
HD-AB-SPS-400 (40mm from knob shaft to mounting hole center)


Product Description

This single handle is compatible with M8 standard handle shafts for ABU, ISUZU, SHIMANO Bantam, DAIWA, and others.
For models like the Ambassadeur, which originally used a single handle, it reduces weight without compromising the original design aesthetic.

Available in four sizes: 32.5mm, 35mm, 37.5mm, and 40mm.
The handle knob is designed specifically for Pure Handle S and S-Trad Handle.
Choose your preferred material and color from the lineup at the bottom of the page and purchase separately.
A counterweight is included.

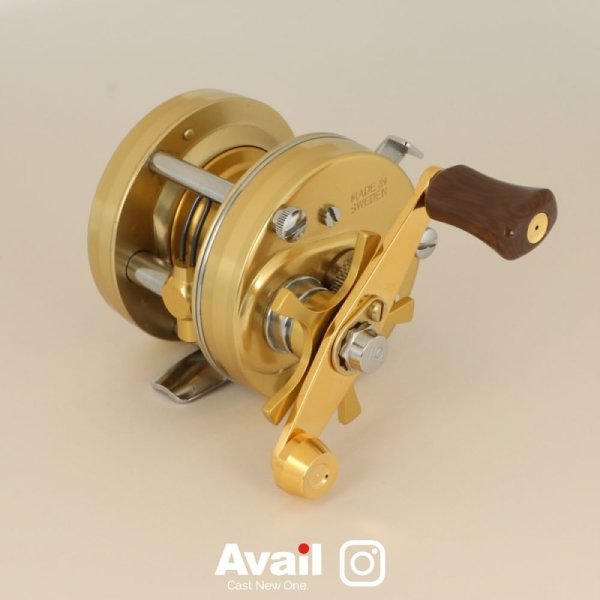

Example setup on an Ambassadeur 5500C reel with installed Avail parts:
Single Pure Handle S 40mm Chrome
Mechanical Brake Knob BCAL-55ST Chrome
Aluminum Retainer 9-10mm type Black
ABU Star Drag KSTR Chrome
S size Wood Knob Ebony


Retainer Selection

You can choose the type and color of the included retainer.
Retainer B type and Retainer 9-10mm type are compatible.


Retainer B Type


Retainer 9-10mm Type

*Retainer 9-10mm type is only compatible with the Avail Pure Handle series.


Retainer B Type Colors


Black

Gunmetal

Silver

Champagne
Gold

Gold

Orange

Red

Pink

Purple

Blue

Sky Blue

Green

Brown

Chrome

Gold-Plated


Retainer 9-10mm Type Colors


Black

Gunmetal

Silver

Champagne
Gold

Gold

Orange

Red

Pink

Purple

Blue

Sky Blue

Green

Brown

Chrome

Gold-Plated



Handle Set Accessories



Accessories:
Retainer fixing screw x 1
Handle knob adjustment washers x 2
Handle knob fixing screws x 1
Stainless steel ball bearings x 2 (Included in products received before April 2024)
Handle nut adjustment washers x 2
Retainer x 1 (Selectable at the time of order)



Accessories:
Retainer fixing screw x 1
Handle knob adjustment washers x 2
Handle knob fixing screws x 1
Resin bushings (7×4×2.5) x 2*
Handle nut adjustment washers x 2
Retainer x 1 (Selectable at the time of order)
*Note: Starting with shipments received in April 2024, the "stainless steel ball bearings" accessory will be changed to "resin bushings."
Due to mixed inventory, we cannot guarantee which accessory will be included at the time of shipment.
Please understand this before purchasing.



Colors

HD-AB-SPS-325BB



HD-AB-SPS-325BB Black




HD-AB-SPS-325BB Gunmetal




HD-AB-SPS-325BB Chrome




HD-AB-SPS-325BB Gold-Plated


HD-AB-SPS-350BB



HD-AB-SPS-350BB Black




HD-AB-SPS-350BB Gunmetal




HD-AB-SPS-350BB Chrome




HD-AB-SPS-350BB Gold-Plated


HD-AB-SPS-375BB



HD-AB-SPS-350BB Black




HD-AB-SPS-375BB Gunmetal




HD-AB-SPS-375BB Chrome




HD-AB-SPS-375BB Gold-Plated


HD-AB-SPS-400BB



HD-AB-SPS-400BB Black




HD-AB-SPS-400BB Gunmetal




HD-AB-SPS-400BB Chrome




HD-AB-SPS-400BB Gold-Plated


Specifications

Basic Specifications

Knob Shaft Type:
Short Knob Shaft

Material:
Handle, Knob Shaft: Super Duralumin
Balance weight: Stainless steel

Bearing Size:
7 x 4 x 2.5mm x 2pcs

Compatible Reels:
Reels with M8 handles from ABU, ISUZU, DAIWA, etc.
Megabass Pagani Series
SHIMANO Bantam Series
Note: Not compatible with ISUZU BC520SSS Works Tune ABC and BC521SSS Works Tune ABC.

Length

Length is measured from the center of the handle shaft to the center of the knob shaft.

Weight

The weights in the table below include the handle body, retainer, two knob fixing screws, and a retainer fixing screw.
The handle knob bearings are not included.

Weight:
Single Pure Handle S for Baitcasting Reels
HD-AB-SPS-325: 4.4g
HD-AB-SPS-350: 14.7g
HD-AB-SPS-375: 15.0g
HD-AB-SPS-400: 15.5g

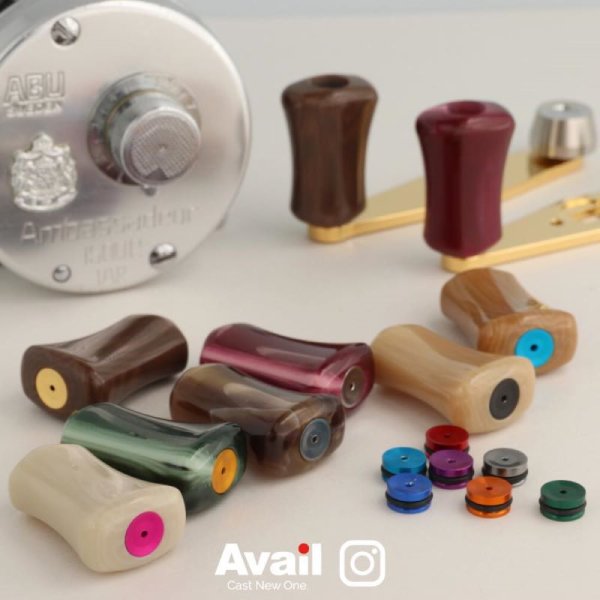

About Handle Knobs

Optional knobs for Single Pure Handle S.
Please purchase separately.
*Note: that these knobs are exclusively designed for S size and are not compatible with other handles except for S-Trad Handle, Pure Handle S, and the Single Pure Handle S introduced on this page.
