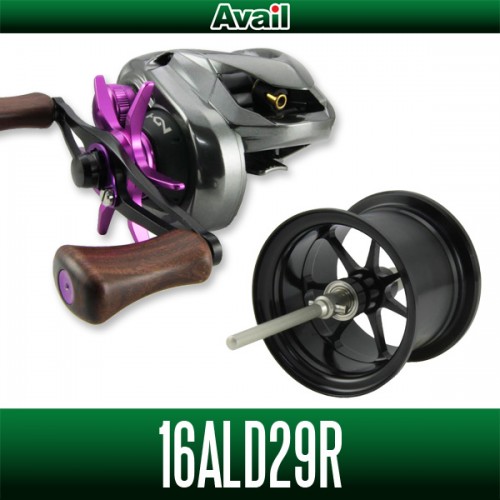

[Avail] SHIMANO Microcast Spool 16ALD29R for 16 ALDEBARAN BFS

Description

It is a microcast spool (custom spool) developed for SHIMANO BaitReel 16 ALDEBARAN BFS released by Avail.

This model is compatible with SHIMANO's original magnet brake, FTB (finesse tune brake system) brake.

The deep groove model Microcast Spool 16ALD29R is designed for comfortable fishing on the 10-12 lb line.

It is a spool with more line capacity than the genuine one recommended for light Texas rigs around 3.5g to 9g and light plucking.

Regarding Spool Bearings

The bearing mounted on the shaft of 16ALD15R, 16ALD29R is 740ZZ size.

Please note that the size is different from the bearing built into the genuine spool.

The bearing on the palming cup side is the same as the genuine one, and the 730ZZ size (inner diameter 3 mm x outer diameter 7 mm x thickness 3 mm) is suitable.




⇒SHG-740ZZ

Color

BLACK




RED




SKY BLUE




CHAMPAGNE GOLD

Spec

Material

Spool : Extra Super Duralumin
Shaft : Extra Super Duralumin


Spool Rim Level

16ALD15R : 1.5mm
16ALD29R : 2.9mm


Compatibility

16 ALDEBARAN BFS LEFT, RIGHT
16 ALDEBARAN BFS XG LEFT, RIGHT


Weight

Microcast Spool 16ALD15R : approx. 4.9g
Microcast Spool 16ALD29R : approx. 5.1g
Orginal Spool : approx. 7.7g
* It will be the weight including ball bearings.


Line capacity

16ALD15R
4Lb φ0.165mm 45m
6Lb φ0.205mm 35m

16ALD29R
10Lb φ0.260mm 50m
12Lb φ0.285mm 40m

* It was measured using the fluorocarbon line (FluoroValue Star) of Yamatoyo Fluoro Co., Ltd.


If you use the spool rim for summing, the alumite may come off due to friction.
In particular, perform summing on the spool surface.
When winding the line on the spool, applying too much tension may cause damage.
Especially when winding a stretchy line such as a nylon line, loosen the tension before use.
