[Avail] Microcast Spool MT1332R for 13 Metanium

[Avail] Microcast Spool MT1332R for 13 Metanium

Our Selling Price: US$60.72 [Regular Price: US$101.20]

Prices vary according to options.

Not available

Item Description

 Regarding the stock of AVAIL product

It takes us two to three days to get ready to send Avail products
because we order them from the Avail factory.
Sometimes they might be out of stock at the timing of your order.
In the case of a stockout, we refund your purchase price immediately.

 Description of the product

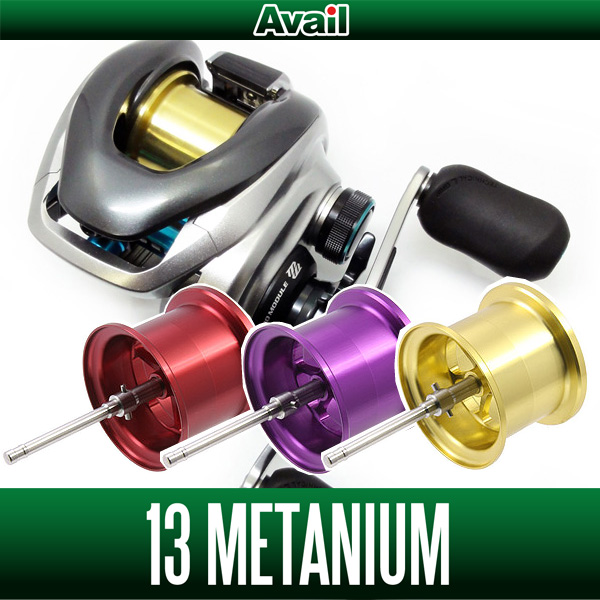

Avail Microcast Spool MT1332R (The spool rim level is 3.2mm.)

It is the light and shallow spool compatible with 13 Metanium.
It will help you cast lightweight lures.

13 Metanium

13 Metanium

 Attention

SVS Infinity puller

* "SVS Infinity Puller" is absolutely necessary to remove the centrifugal brake from the original spool.
Please get one if you do not have.


 Colors

13 Metanium
RED

13 Metanium
PURPLE

13 Metanium
CHAMPAGNE GOLD

 Spec

|Material

Extra Super Duralumin

|Corresponding Models

SHIMANO 13 Metanium, 13 Metanium HG, 13 Metanium XG

|Spool weight


Genuine Spool : about 10.3g
Microcast Spool MT1332R : about 9.0g

|Line capacity

MT1332R 12b-50m:10Lb-65m:8Lb-75m

※The numerical value mentioned above is the result of measuring by winding nylon line up to the edge of spool rim.

 Instruction

13 Metanium

1. Please get your stock spool ready for installation.

13 Metanium

2. Your first step will be to remove all stock SVS brake blocks.

13 Metanium

3. After you have removed all the brake blocks,your next step will be to align the puller with
the spool shaft.

13 Metanium

4. While holding the spool firmly,your next step will be to attach the puller over the SVS block.

13 Metanium

5. After you have attached the puller over the SVS block please turn the puller either left or right approx 5mm.
(If your reel is the '13 Metanium the puller should turn smoothly,but if you are using the '13 Metanium if will feel kind of stiff)

13 Metanium

6. After you have finished with the above step and are sure the puller is properly aligned, your next step will be to turn the puller screw clockwise.

13 Metanium

7. The SVS unit will gradually lift from the spool while turning the puller screw.Please continue to remove the unit by turning the puller screw until the unit is totally free from the spool.Please do not try to remove the SVS unit by hand.

13 Metanium

8. After you have removed the SVS unit from your spool, your next step will be to remove the SVS unit from the puller. To do so, please turn the puller screw in the counter clockwise direction.

13 Metanium

After you have removed the SVS unit from the puller with the screw still attached,your next step will be to remove the SVS from the unit.We recommend using a pin set to remove the SVS.

13 Metanium

If you are having a difficult time removing the SVS from the unit, please turn the screw slowly in the clockwise direction and gently push down the SVS, after doing so,please turn the screw in the counter clockwise direction and this should help to free up the SVS from the unit.

13 Metanium

9. The above photo shows the SVS detached from the SVS unit.

13 Metanium

10. Now you may place the SVS infinity on your new Avail spool.

13 Metanium

11. After you have attached the SVS infinity on your new spool,simply replace the brake blocks and you will be finished.
